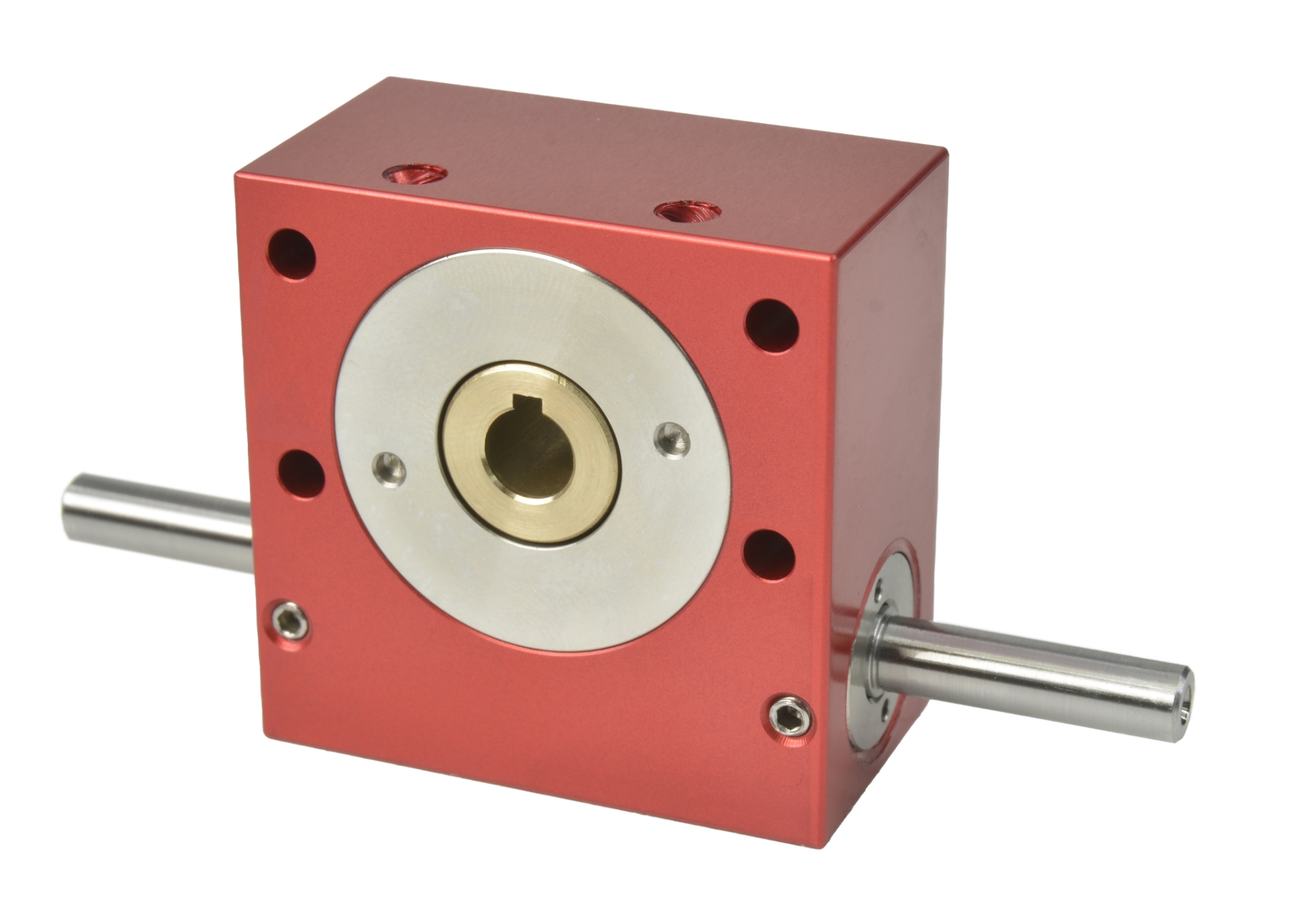

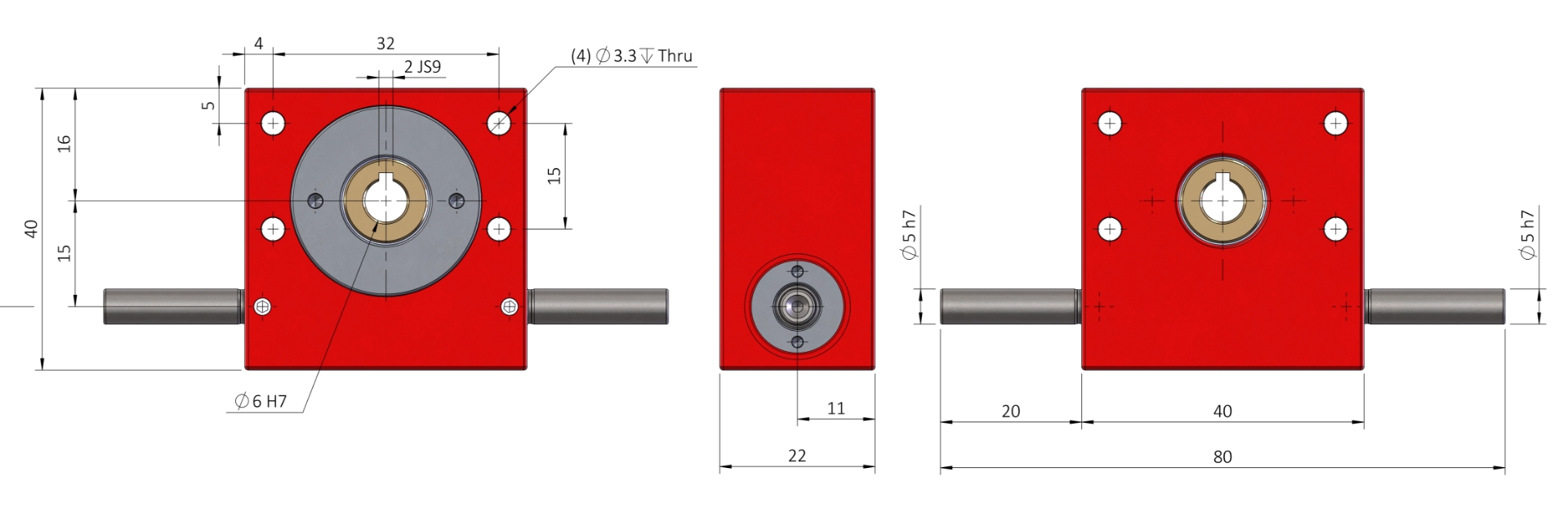

P15 3.5Nm 15mm-Centres
Precision WormWheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P15-6 | 6.66:1 | 15.00 | 3.5 | 1.58 | ≤0.5° |
| P15-6A | 6.66:1 | 15.00 | 3.5 | 1.58 | ≤0.13° |
| P15-6AR | 6.66:1 | 15.00 | 3.5 | 1.58 | ≤0.06° |
| P15-8 | 8:1 | 15.00 | 3.5 | 1.73 | ≤0.5° |
| P15-8A | 8:1 | 15.00 | 3.5 | 1.73 | ≤0.13° |
| P15-8AR | 8:1 | 15.00 | 3.5 | 1.73 | ≤0.06° |
| P15-10 | 10:1 | 15.00 | 3.5 | 1.73 | ≤0.5° |
| P15-10A | 10:1 | 15.00 | 3.5 | 1.73 | ≤0.13° |
| P15-10AR | 10:1 | 15.00 | 3.5 | 1.73 | ≤0.06° |
| P15-13 | 13.33:1 | 15.00 | 3.5 | 1.88 | ≤0.5° |
| P15-13A | 13.33:1 | 15.00 | 3.5 | 1.88 | ≤0.13° |
| P15-13AR | 13.33:1 | 15.00 | 3.5 | 1.88 | ≤0.06° |
| P15-20 | 20:1 | 15.00 | 3.5 | 2.03 | ≤0.5° |
| P15-20A | 20:1 | 15.00 | 3.5 | 2.03 | ≤0.13° |
| P15-20AR | 20:1 | 15.00 | 3.5 | 2.03 | ≤0.06° |
| P15-40 | 40:1 | 15.00 | 3.5 | 2.18 | ≤0.5° |
| P15-40A | 40:1 | 15.00 | 3.5 | 2.18 | ≤0.13° |
| P15-40AR | 40:1 | 15.00 | 3.5 | 2.18 | ≤0.06° |
| P15-80 | 80:1 | 15.00 | 2 | 1.28 | ≤0.5° |
| P15-80A | 80:1 | 15.00 | 2 | 1.28 | ≤0.13° |
| P15-80AR | 80:1 | 15.00 | 2 | 1.28 | ≤0.06° |
