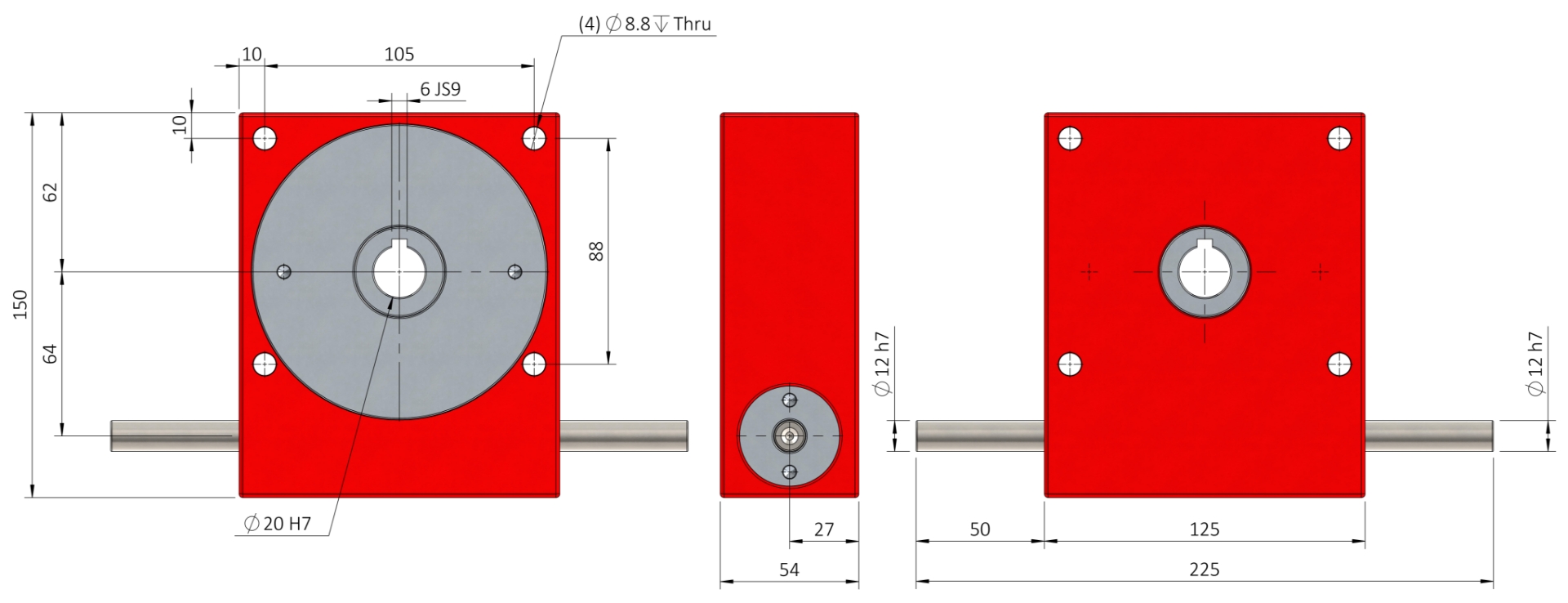

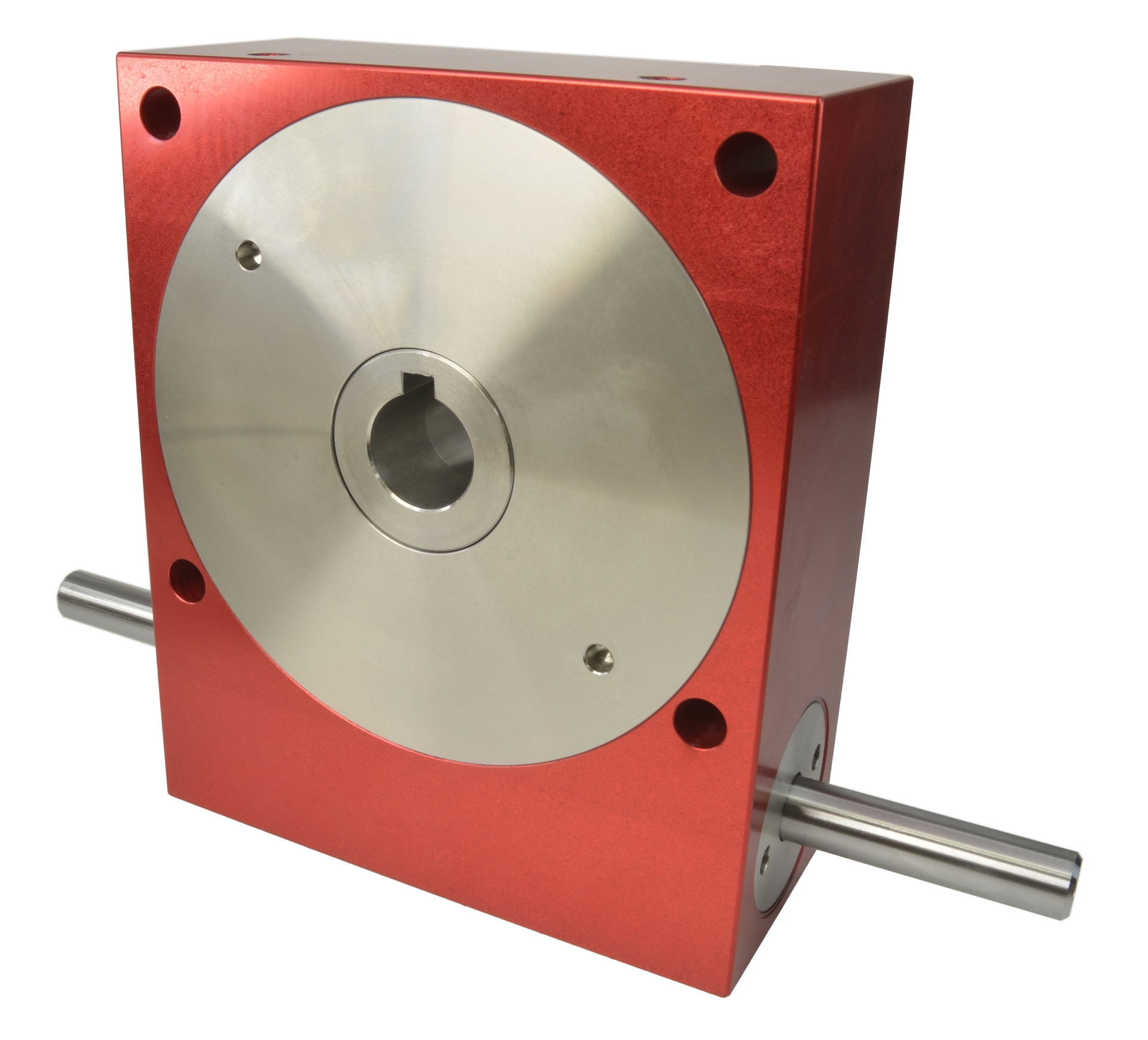

P60 118Nm 64mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P60-10 | 10:1 | 64.00 | 115 | 45.00 | ≤0.5° |
| P60-12 | 12:1 | 64.00 | 115 | 47.00 | ≤0.5° |
| P60-15 | 15:1 | 64.00 | 115 | 50.00 | ≤0.5° |
| P60-20 | 20:1 | 64.00 | 120 | 54.00 | ≤0.5° |
| P60-30 | 30:1 | 64.00 | 120 | 58.00 | ≤0.5° |
| P60-60 | 60:1 | 64.00 | 120 | 64.00 | ≤0.5° |
| P60-120 | 120:1 | 64.00 | 66 | 39.00 | ≤0.5° |
| P60-10A | 10:1 | 64.00 | 115 | 45.00 | ≤0.13° |
| P60-12A | 12:1 | 64.00 | 115 | 47.00 | ≤0.13° |
| P60-15A | 15:1 | 64.00 | 115 | 50.00 | ≤0.13° |
| P60-20A | 20:1 | 64.00 | 120 | 54.00 | ≤0.13° |
| P60-30A | 30:1 | 64.00 | 120 | 58.00 | ≤0.13° |
| P60-60A | 60:1 | 64.00 | 120 | 64.00 | ≤0.13° |
| P60-120A | 120:1 | 64.00 | 66 | 39.00 | ≤0.13° |
| P60-10AR | 10:1 | 64.00 | 115 | 45.00 | ≤0.06° |
| P60-12AR | 12:1 | 64.00 | 115 | 47.00 | ≤0.06° |
| P60-15AR | 15:1 | 64.00 | 115 | 50.00 | ≤0.06° |
| P60-20AR | 20:1 | 64.00 | 120 | 54.00 | ≤0.06° |
| P60-30AR | 30:1 | 64.00 | 120 | 58.00 | ≤0.06° |
| P60-60AR | 60:1 | 64.00 | 120 | 64.00 | ≤0.06° |
| P60-120AR | 120:1 | 64.00 | 66 | 39.00 | ≤0.06° |
