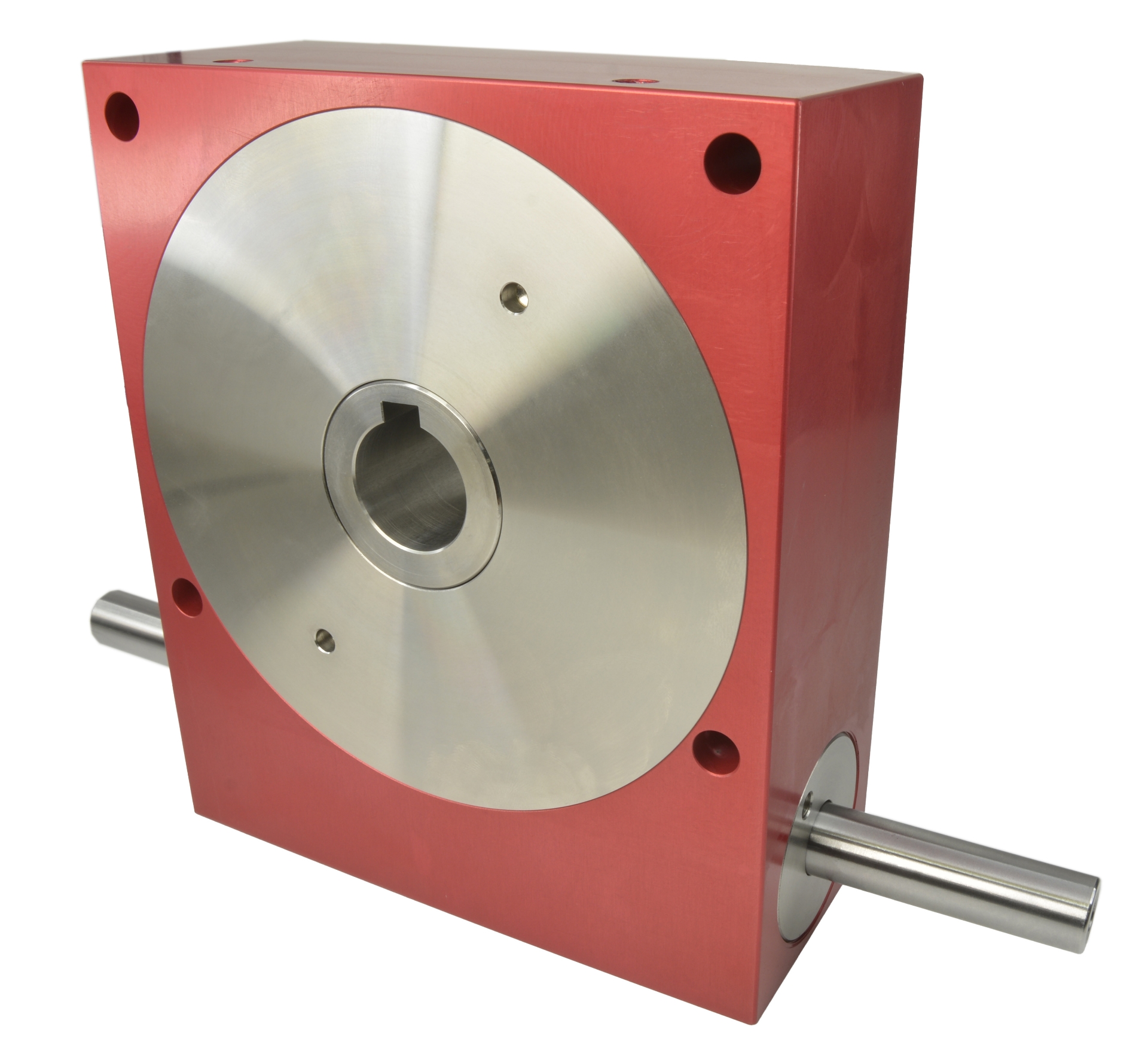

P70 164Nm 72.5mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P70-10 | 10:1 | 72.50 | 160 | 61.00 | ≤0.5° |
| P70-12 | 12:1 | 72.50 | 160 | 65.00 | ≤0.5° |
| P70-15 | 15:1 | 72.50 | 160 | 67.00 | ≤0.5° |
| P70-20 | 20:1 | 72.50 | 164 | 71.00 | ≤0.5° |
| P70-30 | 30:1 | 72.50 | 164 | 73.00 | ≤0.5° |
| P70-60 | 60:1 | 72.50 | 164 | 83.00 | ≤0.5° |
| P70-120 | 120:1 | 72.50 | 90 | 55.00 | ≤0.5° |
| P70-10A | 10:1 | 72.50 | 160 | 61.00 | ≤0.13° |
| P70-12A | 12:1 | 72.50 | 160 | 65.00 | ≤0.13° |
| P70-15A | 15:1 | 72.50 | 160 | 67.00 | ≤0.13° |
| P70-20A | 20:1 | 72.50 | 164 | 71.00 | ≤0.13° |
| P70-30A | 30:1 | 72.50 | 164 | 73.00 | ≤0.13° |
| P70-60A | 60:1 | 72.50 | 164 | 83.00 | ≤0.13° |
| P70-120A | 120:1 | 72.50 | 90 | 55.00 | ≤0.13° |
| P70-10AR | 10:1 | 72.50 | 160 | 61.00 | ≤0.06° |
| P70-12AR | 12:1 | 72.50 | 160 | 65.00 | ≤0.06° |
| P70-15AR | 15:1 | 72.50 | 160 | 67.00 | ≤0.06° |
| P70-20AR | 20:1 | 72.50 | 164 | 71.00 | ≤0.06° |
| P70-30AR | 30:1 | 72.50 | 164 | 73.00 | ≤0.06° |
| P70-60AR | 60:1 | 72.50 | 164 | 83.00 | ≤0.06° |
| P70-120AR | 120:1 | 72.50 | 90 | 55.00 | ≤0.06° |
