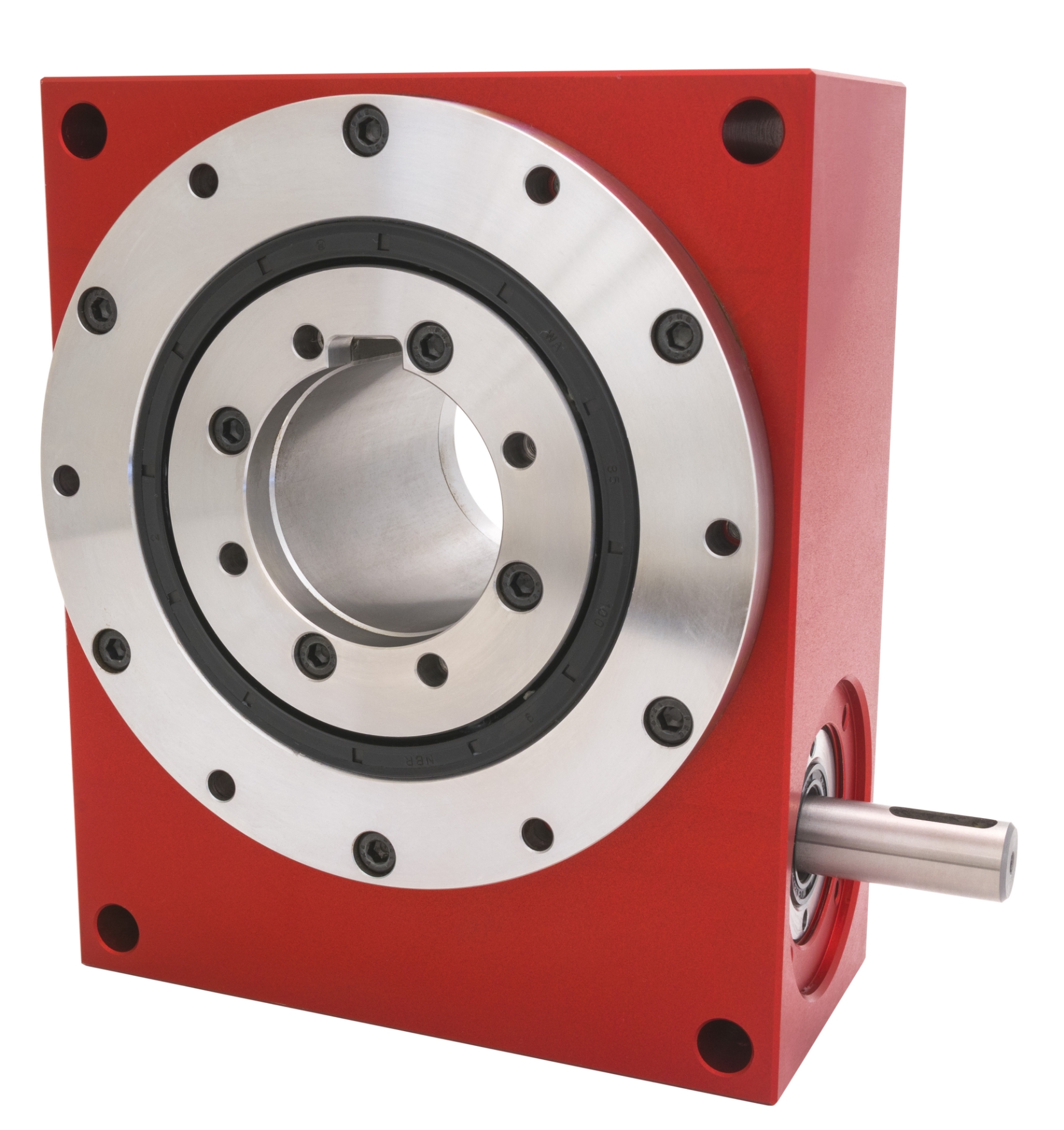

P80 116.3Nm 65.5mm-Centres
Precision WormWheel Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P80-50A | 50:1 | 65.50 | 120 | 59.70 | ≤0.1° |
| P80-50AR | 50:1 | 65.50 | 120 | 59.70 | ≤0.06° |
| P80-10A | 10:1 | 65.50 | 120 | 56.10 | ≤0.1° |
| P80-10AR | 10:1 | 65.50 | 120 | 56.10 | ≤0.06° |
| P80-12A | 12.5:1 | 65.50 | 120 | 54.20 | ≤0.1° |
| P80-12AR | 12.5:1 | 65.50 | 120 | 54.20 | ≤0.06° |
| P80-16A | 16.667:1 | 65.50 | 120 | 55.90 | ≤0.1° |
| P80-16AR | 16.667:1 | 65.50 | 120 | 55.90 | ≤0.06° |
| P80-25A | 25:1 | 65.50 | 120 | 55.20 | ≤0.1° |
| P80-25AR | 25:1 | 65.50 | 120 | 55.20 | ≤0.06° |
| P80-100A | 100:1 | 65.50 | 60 | 28.10 | ≤0.1° |
| P80-100AR | 100:1 | 65.50 | 60 | 28.10 | ≤0.06° |
