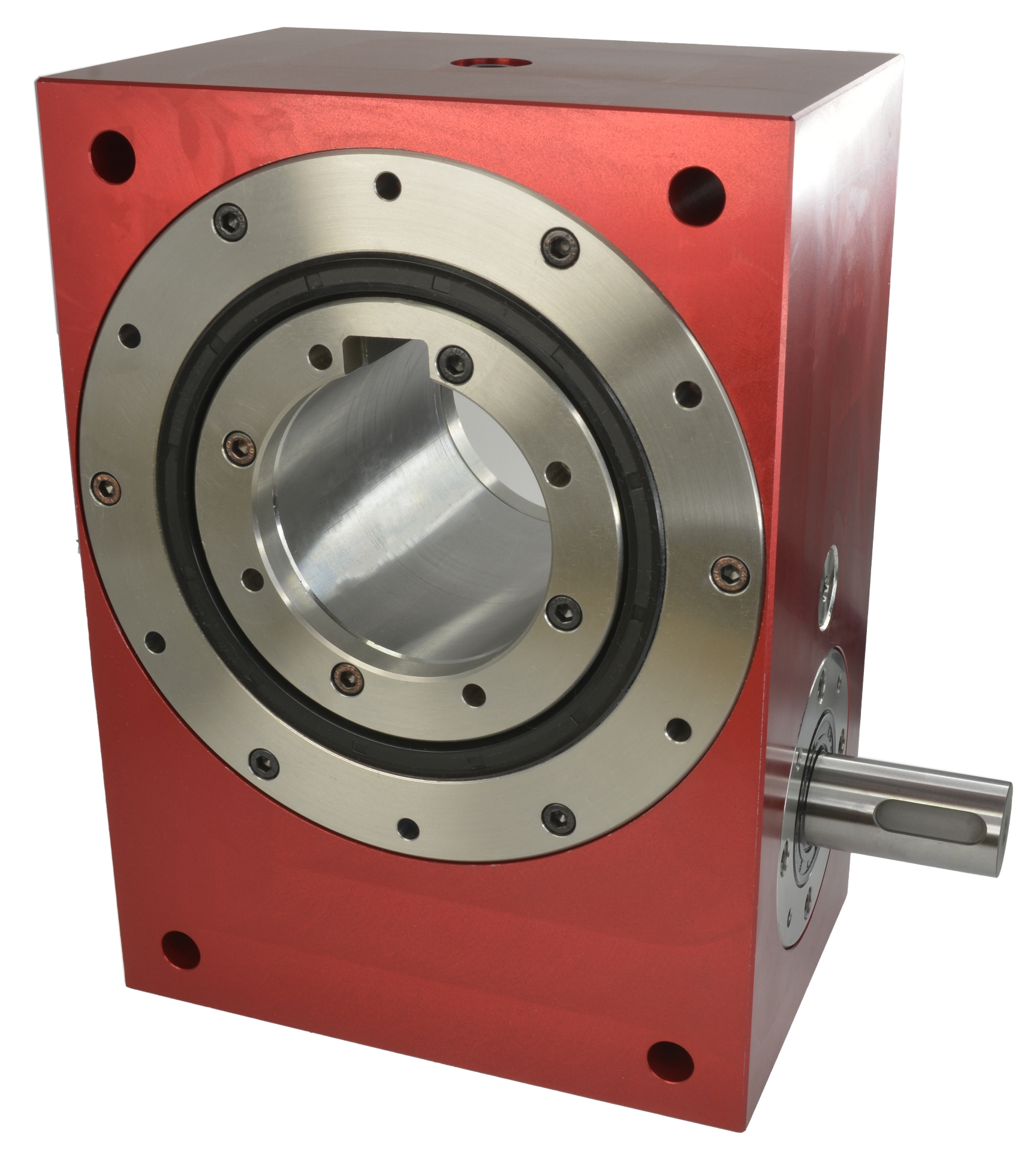

P85 200Nm 85mm-Centres
Precision WormWheel Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P85-44AR | 44:1 | 85.00 | 300 | 200.00 | ≤0.06° |
| P85-22AR | 22:1 | 85.00 | 300 | 200.00 | ≤0.06° |
| P85-14.667AR | 14.666:1 | 85.00 | 300 | 200.00 | ≤0.06° |
| P85-14.667A | 14.666:1 | 85.00 | 300 | 200.00 | ≤0.1° |
| P85-22A | 22:1 | 85.00 | 300 | 200.00 | ≤0.1° |
| P85-44A | 44:1 | 85.00 | 300 | 200.00 | ≤0.1° |
