PZBG2.0-30S

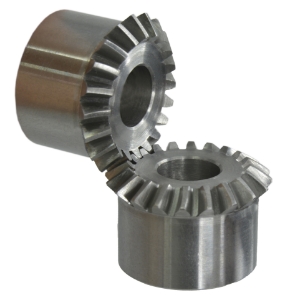

Zerol Bevel gears ground from Ondrives UK precision gear and gearbox manufacturer

PZBG2.0-30S

2.0 Module 303 Stainless Steel Precision Zerol Ground Bevel Gears 20° PA - Quality Grade 7f24 DIN 3985
Zerol Bevel gears ground from Ondrives UK precision gear and gearbox manufacturer Zerol Bevel gears ground from Ondrives UK precision gear and gearbox manufacturer Zerol Bevel gears ground from Ondrives UK precision gear and gearbox manufacturer Zerol Bevel gears ground from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Gear Ratio [i=]1:1
Normal Module mn2
No. of Teeth [z]30
Torque T₂ [Nm] n1 100 r/min24.17
Pitch Diameter [d]60
Outside Diameter [da]62.83
Mounting Distance [Y]50
Face Width [b]11
Bore Diameter [di] H712
Dimension [BL]26
Dimension [L]29
Boss Diameter [BD]40
Boss Length [DL]15
Pitch Apex to Crown [X]28.59
Mass [kg]0.363
Inertia [I] kgm²1.19 x 10-4

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Gear Ratio [i=]1:1
Normal Module mn2
No. of Teeth [z]30
Torque T₂ [Nm] n1 100 r/min24.17
Pitch Diameter [d]60
Outside Diameter [da]62.83
Mounting Distance [Y]50
Face Width [b]11
Bore Diameter [di] H712
Dimension [BL]26
Dimension [L]29
Boss Diameter [BD]40
Boss Length [DL]15
Pitch Apex to Crown [X]28.59
Mass [kg]0.363
Inertia [I] kgm²1.19 x 10-4
