ABPSG0.5-140S

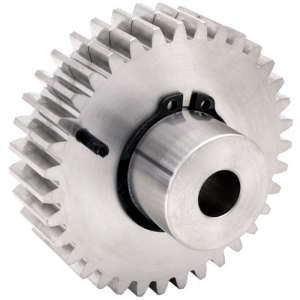

Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-140S

ABPSG0.5-140S

0.5 Module 303 Stainless Steel Precision Anti-Backlash Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-140S Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-140S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]140
Torque T₂ [Nm] n1 100 r/min0.65
Ref. Diameter [d]70
Tip Diameter [da]71
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²1.10 x 10-4
Mass [kg]0.267

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]140
Torque T₂ [Nm] n1 100 r/min0.65
Ref. Diameter [d]70
Tip Diameter [da]71
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²1.10 x 10-4
Mass [kg]0.267
