ABPSG0.5-250S

Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-250S

ABPSG0.5-250S

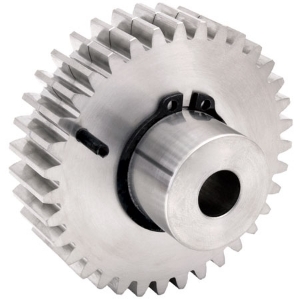

0.5 Module 303 Stainless Steel Precision Anti-Backlash Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-250S Ondrives Precision Gears and Gearboxes Part number ABPSG0.5-250S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]250
Torque T₂ [Nm] n1 100 r/min1.08
Ref. Diameter [d]125
Tip Diameter [da]126
Bore Diameter [di] H716
Hub Diameter [BD]65
Inertia [I] kgm²1.01 x 10-3
Mass [kg]0.731

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]250
Torque T₂ [Nm] n1 100 r/min1.08
Ref. Diameter [d]125
Tip Diameter [da]126
Bore Diameter [di] H716
Hub Diameter [BD]65
Inertia [I] kgm²1.01 x 10-3
Mass [kg]0.731
