ABPSG3.0-27S

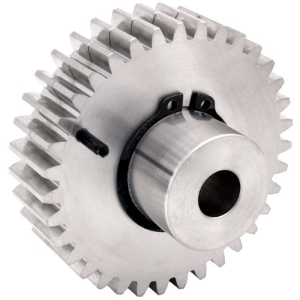

Ondrives Precision Gears and Gearboxes Part number ABPSG3.0-27S

ABPSG3.0-27S

3.0 Module 303 Stainless Steel Precision Anti-Backlash Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number ABPSG3.0-27S Ondrives Precision Gears and Gearboxes Part number ABPSG3.0-27S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min4.43
Ref. Diameter [d]81
Tip Diameter [da]87
Bore Diameter [di] H712
Hub Diameter [BD]35
Inertia [I] kgm²7.34 x 10-4
Mass [kg]1.399

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min4.43
Ref. Diameter [d]81
Tip Diameter [da]87
Bore Diameter [di] H712
Hub Diameter [BD]35
Inertia [I] kgm²7.34 x 10-4
Mass [kg]1.399
