ABPWG0.5-55-4

Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-55-4

ABPWG0.5-55-4

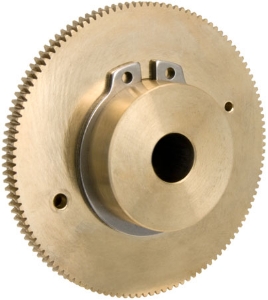

0.5 Module Bronze CA104 4 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-55-4 Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-55-4

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]55
Centre Distance [a]18.75
Axial Module mx0.5
Ref. Diameter [d]27.5
Pressure Angle20°
Wheel Throat [da2]28.5
Bore Diameter [di] H76
Hub Diameter [BD]15
Inertia [I] kgm²1.90 x 10-6
Mass [kg]0.033
Torque T₂ [Nm] n1 100 r/min0.24
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]55
Centre Distance [a]18.75
Axial Module mx0.5
Ref. Diameter [d]27.5
Pressure Angle20°
Wheel Throat [da2]28.5
Bore Diameter [di] H76
Hub Diameter [BD]15
Inertia [I] kgm²1.90 x 10-6
Mass [kg]0.033
Torque T₂ [Nm] n1 100 r/min0.24
Gear Tooth TypeWormwheel
