  3. Precision Anti-Backlash Wormwheels

ABPWG1.0-105-3

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-105-3

ABPWG1.0-105-3

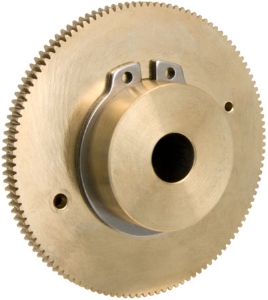

1.0 Module Bronze CA104 3 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-105-3 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-105-3

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]105
Centre Distance [a]60
Axial Module mx1.0
Ref. Diameter [d]105
Pressure Angle20°
Wheel Throat [da2]107
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²9.41 x 10-4
Mass [kg]0.936
Torque T₂ [Nm] n1 100 r/min0.87
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]105
Centre Distance [a]60
Axial Module mx1.0
Ref. Diameter [d]105
Pressure Angle20°
Wheel Throat [da2]107
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²9.41 x 10-4
Mass [kg]0.936
Torque T₂ [Nm] n1 100 r/min0.87
Gear Tooth TypeWormwheel
