  3. Precision Anti-Backlash Wormwheels

ABPWG1.0-50-4

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-50-4

ABPWG1.0-50-4

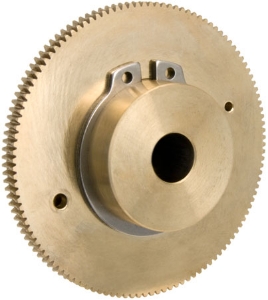

1.0 Module Bronze CA104 4 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-50-4 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-50-4

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]50
Centre Distance [a]32.5
Axial Module mx1.0
Ref. Diameter [d]50
Pressure Angle20°
Wheel Throat [da2]52
Bore Diameter [di] H78
Hub Diameter [BD]20
Inertia [I] kgm²3.79 x 10-5
Mass [kg]0.171
Torque T₂ [Nm] n1 100 r/min0.43
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]50
Centre Distance [a]32.5
Axial Module mx1.0
Ref. Diameter [d]50
Pressure Angle20°
Wheel Throat [da2]52
Bore Diameter [di] H78
Hub Diameter [BD]20
Inertia [I] kgm²3.79 x 10-5
Mass [kg]0.171
Torque T₂ [Nm] n1 100 r/min0.43
Gear Tooth TypeWormwheel
