  3. Precision Anti-Backlash Wormwheels

ABPWG1.0-70-3

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-70-3

ABPWG1.0-70-3

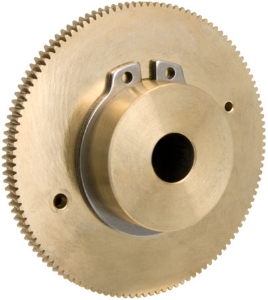

1.0 Module Bronze CA104 3 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-70-3 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-70-3

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]70
Centre Distance [a]42.5
Axial Module mx1.0
Ref. Diameter [d]70
Pressure Angle20°
Wheel Throat [da2]72
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.61 x 10-4
Mass [kg]0.369
Torque T₂ [Nm] n1 100 r/min0.53
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]70
Centre Distance [a]42.5
Axial Module mx1.0
Ref. Diameter [d]70
Pressure Angle20°
Wheel Throat [da2]72
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.61 x 10-4
Mass [kg]0.369
Torque T₂ [Nm] n1 100 r/min0.53
Gear Tooth TypeWormwheel
