ABPWG1.0-72-4

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-72-4

ABPWG1.0-72-4

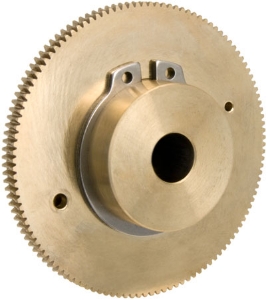

1.0 Module Bronze CA104 4 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-72-4 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-72-4

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]72
Centre Distance [a]43.5
Axial Module mx1.0
Ref. Diameter [d]72
Pressure Angle20°
Wheel Throat [da2]74
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.80 x 10-4
Mass [kg]0.386
Torque T₂ [Nm] n1 100 r/min0.54
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]72
Centre Distance [a]43.5
Axial Module mx1.0
Ref. Diameter [d]72
Pressure Angle20°
Wheel Throat [da2]74
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.80 x 10-4
Mass [kg]0.386
Torque T₂ [Nm] n1 100 r/min0.54
Gear Tooth TypeWormwheel
