ABPWG1.5-68-4

Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-68-4

ABPWG1.5-68-4

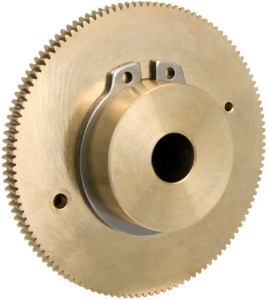

1.5 Module Bronze CA104 4 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-68-4 Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-68-4

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]68
Centre Distance [a]61
Axial Module mx1.5
Ref. Diameter [d]102
Pressure Angle20°
Wheel Throat [da2]105
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²1.20 x 10-3
Mass [kg]1.28
Torque T₂ [Nm] n1 100 r/min1.93
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]4
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]68
Centre Distance [a]61
Axial Module mx1.5
Ref. Diameter [d]102
Pressure Angle20°
Wheel Throat [da2]105
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²1.20 x 10-3
Mass [kg]1.28
Torque T₂ [Nm] n1 100 r/min1.93
Gear Tooth TypeWormwheel
