ABPWG2.5-35-2

Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-35-2

ABPWG2.5-35-2

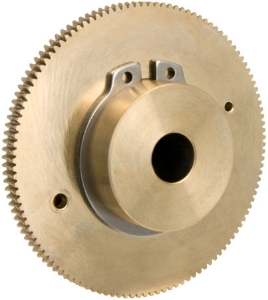

2.5 Module Bronze CA104 2 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-35-2 Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-35-2

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]35
Centre Distance [a]61.25
Axial Module mx2.5
Ref. Diameter [d]87.5
Pressure Angle20°
Wheel Throat [da2]92.5
Bore Diameter [di] H714
Hub Diameter [BD]45
Inertia [I] kgm²8.80 x 10-4
Mass [kg]1.406
Torque T₂ [Nm] n1 100 r/min3.33
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]35
Centre Distance [a]61.25
Axial Module mx2.5
Ref. Diameter [d]87.5
Pressure Angle20°
Wheel Throat [da2]92.5
Bore Diameter [di] H714
Hub Diameter [BD]45
Inertia [I] kgm²8.80 x 10-4
Mass [kg]1.406
Torque T₂ [Nm] n1 100 r/min3.33
Gear Tooth TypeWormwheel
