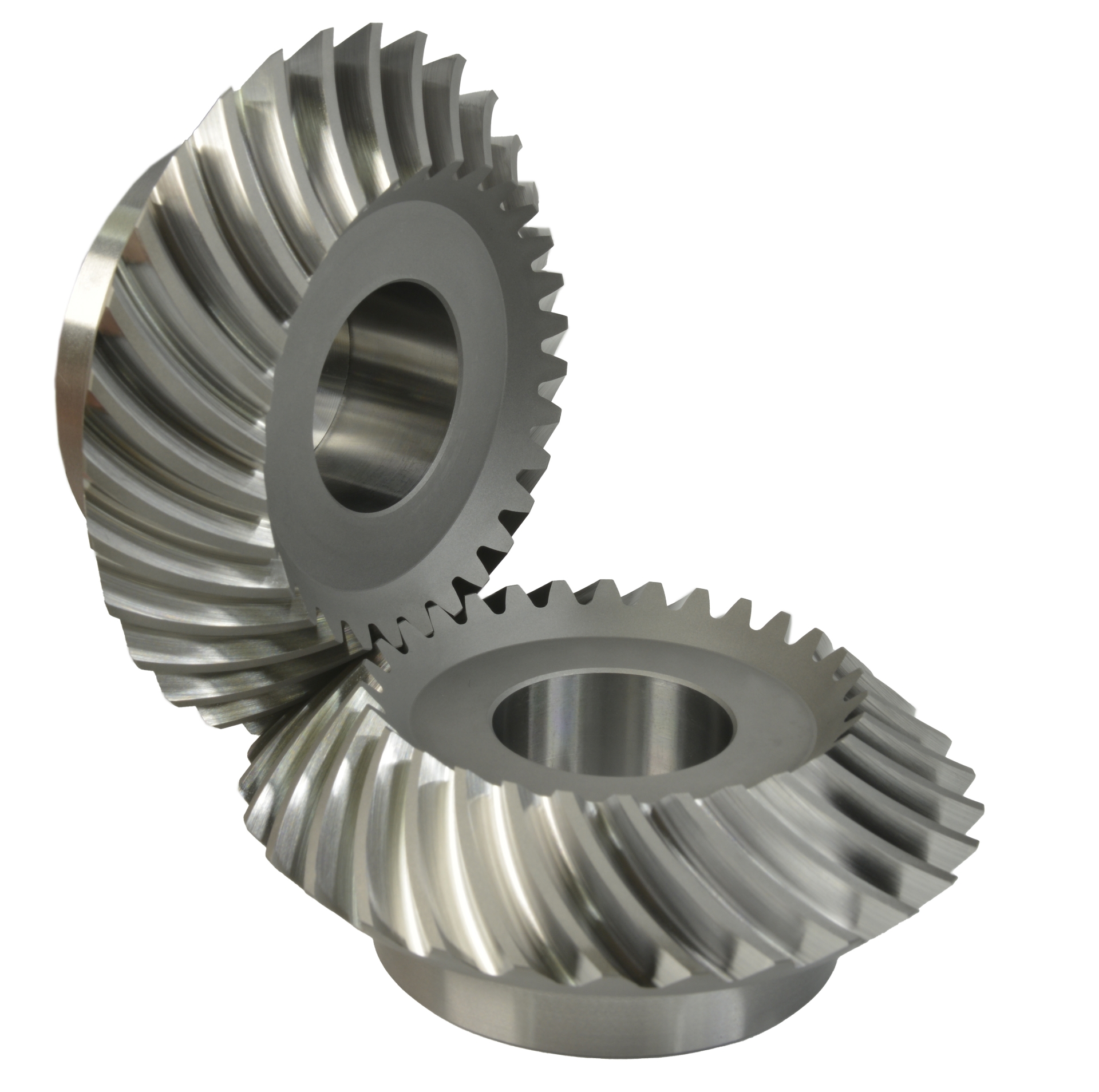

Ground Spiral Bevel Gear Sets
Precision Spiral Bevels Gears
Ground from solid and finish ground by Ondrives at our UK factory.

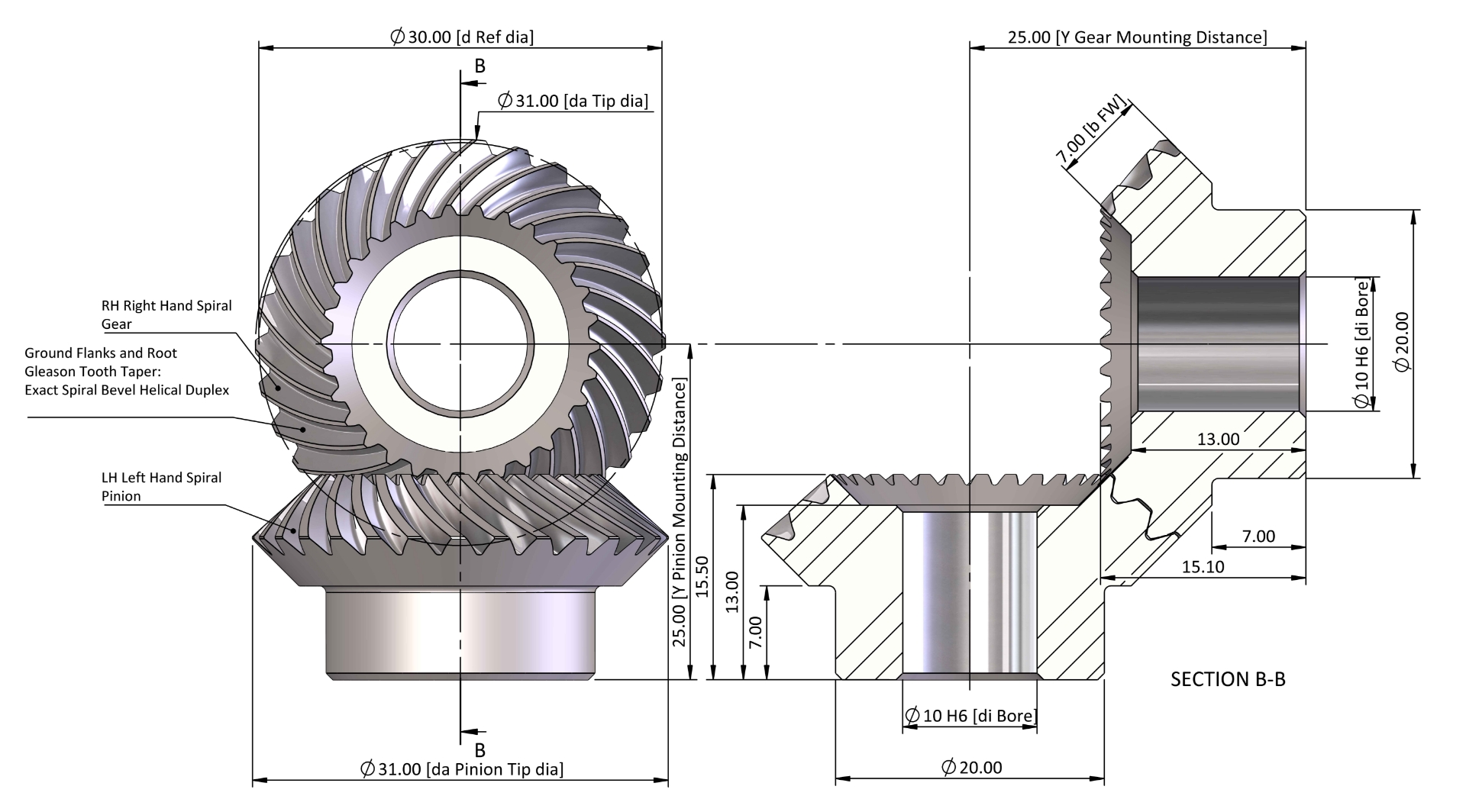

| Sku (Part No.) | Gear Ratio [i=] | Normal Module mn | No. of Teeth [z] | Bore Diameter [di] H6 | Bore Diameter [di] H7 | Torque T₂ [Nm] n1 100 r/min | Output Torque T₂n [Nm] | Material |
|---|---|---|---|---|---|---|---|---|
| PSBG1.0-30 | 1:1 | 1 | 30 | 10 | N/A | N/A | 6.00 | 17-4PH (EN1.4542 AISI 630) Stainless Steel Hrc40 |
| PSBG1.5-30 | 1:1 | 1.5 | 30 | 12 | N/A | N/A | 20.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG2.0-30 | 1:1 | 2 | 30 | 14 | N/A | N/A | 50.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG2.5-30 | 1:1 | 2.5 | 30 | 20 | N/A | N/A | 120.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG3.0-30 | 1:1 | 3 | 30 | 30 | N/A | N/A | 200.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG4.0-30 | 1:1 | 4 | 30 | 40 | N/A | N/A | 400.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSBG5.0-30 | 1:1 | 5 | 30 | 50 | N/A | N/A | 800.00 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PZBG0.8-30 | N/A | 0.8 | 30 | N/A | 8 | 3.12 | N/A | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG0.8-30S | N/A | 0.8 | 30 | N/A | 8 | 1.88 | N/A | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG1.0-30 | N/A | 1 | 30 | N/A | 8 | 5.9 | N/A | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG1.5-30 | N/A | 1.5 | 30 | N/A | 10 | 17.88 | N/A | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG1.0-30S | N/A | 1 | 30 | N/A | 8 | 3.56 | N/A | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG1.5-30S | N/A | 1.5 | 30 | N/A | 10 | 10.72 | N/A | AISI 303 (EN 1.4305) Stainless Steel |
| PZBG2.0-30 | N/A | 2 | 30 | N/A | 12 | 40.28 | N/A | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PZBG2.0-30S | N/A | 2 | 30 | N/A | 12 | 24.17 | N/A | AISI 303 (EN 1.4305) Stainless Steel |
