PPS1.0-24

Ondrives Precision Gears and Gearboxes Part number PPS1.0-24

PPS1.0-24

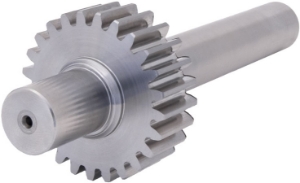

1.0 Module Steel 817M40T (28HRC) Precision Pinion Shaft 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PPS1.0-24 Ondrives Precision Gears and Gearboxes Part number PPS1.0-24

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]24
Torque T₂ [Nm] n1 100 r/min2.97
Ref. Diameter [d]24
Tip Diameter [da]26
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Inertia [I] kgm²3.128 x 10-6
Mass [kg]0.084

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]24
Torque T₂ [Nm] n1 100 r/min2.97
Ref. Diameter [d]24
Tip Diameter [da]26
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Inertia [I] kgm²3.128 x 10-6
Mass [kg]0.084
