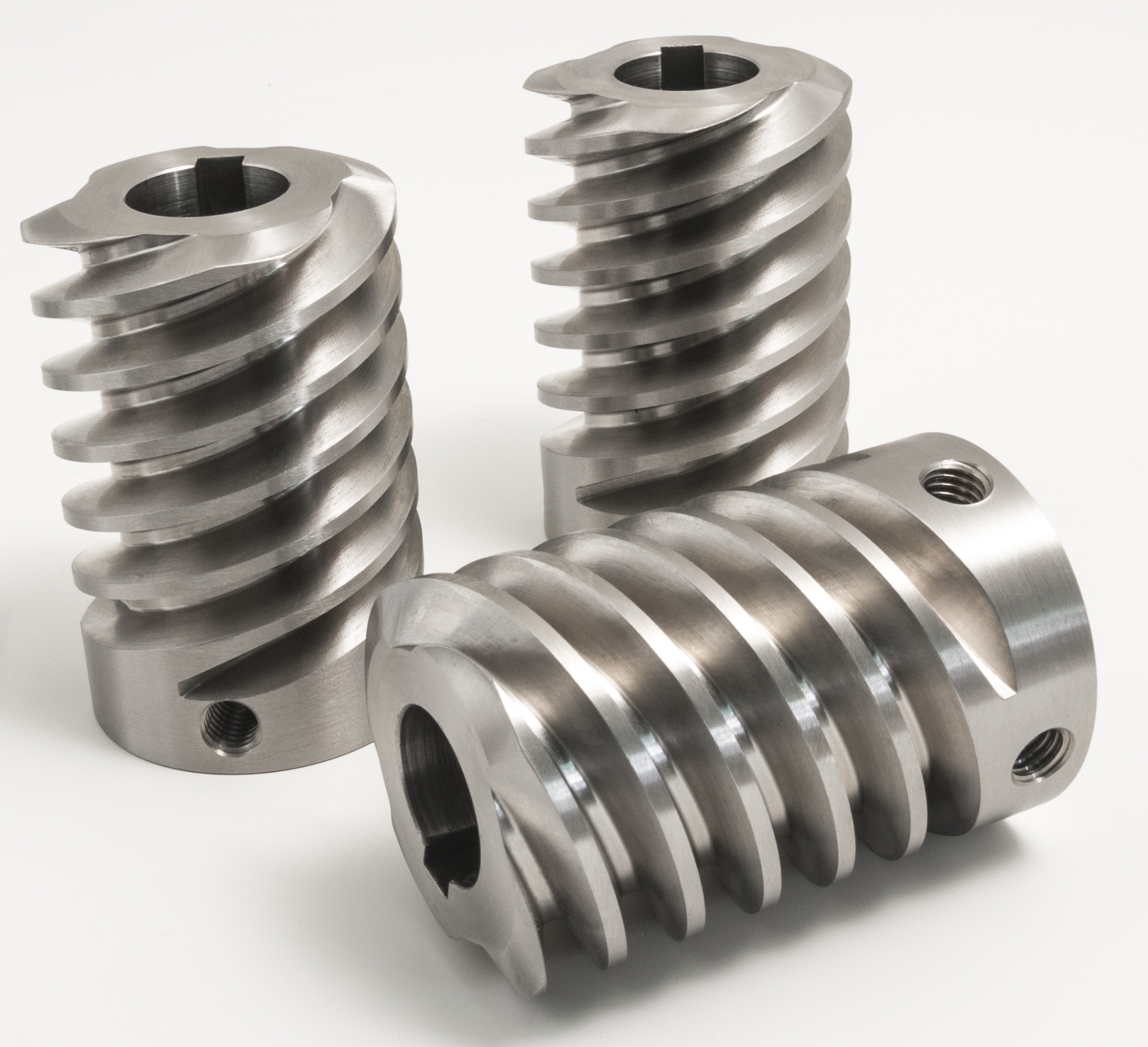

Precision Worms
Precision Worms to run with WormWheels
Ondrives is the UK manufacturer of worms and wheel.
| Sku (Part No.) | Gear Tooth Type | Type | Axial Module mx | No. of Starts worm [z1] | Material |
|---|---|---|---|---|---|
| PSW0.5-1 | Worm Cut | Shaft | 0.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW0.5-2 | Worm Cut | Shaft | 0.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW0.5-3 | Worm Cut | Shaft | 0.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW0.5-4 | Worm Cut | Shaft | 0.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW0.5-1S | Worm Cut | Shaft | 0.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW0.5-2S | Worm Cut | Shaft | 0.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW0.5-3S | Worm Cut | Shaft | 0.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW0.5-4S | Worm Cut | Shaft | 0.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW0.5-1PK | Worm Cut | Shaft | 0.5 | 1 | PEEK GF30 |
| PSW0.5-2PK | Worm Cut | Shaft | 0.5 | 2 | PEEK GF30 |
| PSW0.5-3PK | Worm Cut | Shaft | 0.5 | 3 | PEEK GF30 |
| PSW0.5-4PK | Worm Cut | Shaft | 0.5 | 4 | PEEK GF30 |
| PSW0.5-1DL | Worm Cut | Shaft | 0.5 | 1 | Delrin POM |
| PSW0.5-2DL | Worm Cut | Shaft | 0.5 | 2 | Delrin POM |
| PSW0.5-3DL | Worm Cut | Shaft | 0.5 | 3 | Delrin POM |
| PSW0.5-4DL | Worm Cut | Shaft | 0.5 | 4 | Delrin POM |
| PSW0.5-1HG | Worm Cut | Shaft | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW0.5-2HG | Worm Cut | Shaft | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW0.5-3HG | Worm Cut | Shaft | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW0.5-4HG | Worm Cut | Shaft | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.0-1 | Worm Cut | Shaft | 1.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.0-2 | Worm Cut | Shaft | 1.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.0-3 | Worm Cut | Shaft | 1.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.0-4 | Worm Cut | Shaft | 1.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.5-1 | Worm Cut | Shaft | 1.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.5-2 | Worm Cut | Shaft | 1.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.5-3 | Worm Cut | Shaft | 1.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.5-4 | Worm Cut | Shaft | 1.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW1.0-1S | Worm Cut | Shaft | 1.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.0-2S | Worm Cut | Shaft | 1.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.0-3S | Worm Cut | Shaft | 1.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.0-4S | Worm Cut | Shaft | 1.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.5-1S | Worm Cut | Shaft | 1.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.5-2S | Worm Cut | Shaft | 1.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.5-3S | Worm Cut | Shaft | 1.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.5-4S | Worm Cut | Shaft | 1.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW1.0-1PK | Worm Cut | Shaft | 1.0 | 1 | PEEK GF30 |
| PSW1.0-2PK | Worm Cut | Shaft | 1.0 | 2 | PEEK GF30 |
| PSW1.0-3PK | Worm Cut | Shaft | 1.0 | 3 | PEEK GF30 |
| PSW1.0-4PK | Worm Cut | Shaft | 1.0 | 4 | PEEK GF30 |
| PSW1.0-1DL | Worm Cut | Shaft | 1.0 | 1 | Delrin POM |
| PSW1.0-2DL | Worm Cut | Shaft | 1.0 | 2 | Delrin POM |
| PSW1.0-3DL | Worm Cut | Shaft | 1.0 | 3 | Delrin POM |
| PSW1.0-4DL | Worm Cut | Shaft | 1.0 | 4 | Delrin POM |
| PSW1.5-1PK | Worm Cut | Shaft | 1.5 | 1 | PEEK GF30 |
| PSW1.5-2PK | Worm Cut | Shaft | 1.5 | 2 | PEEK GF30 |
| PSW1.5-3PK | Worm Cut | Shaft | 1.5 | 3 | PEEK GF30 |
| PSW1.5-4PK | Worm Cut | Shaft | 1.5 | 4 | PEEK GF30 |
| PSW1.5-1DL | Worm Cut | Shaft | 1.5 | 1 | Delrin POM |
| PSW1.5-2DL | Worm Cut | Shaft | 1.5 | 2 | Delrin POM |
| PSW1.5-3DL | Worm Cut | Shaft | 1.5 | 3 | Delrin POM |
| PSW1.5-4DL | Worm Cut | Shaft | 1.5 | 4 | Delrin POM |
| PSW1.0-1HG | Worm Cut | Shaft | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.0-2HG | Worm Cut | Shaft | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.0-3HG | Worm Cut | Shaft | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.0-4HG | Worm Cut | Shaft | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.5-1HG | Worm Cut | Shaft | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.5-2HG | Worm Cut | Shaft | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.5-3HG | Worm Cut | Shaft | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW1.5-4HG | Worm Cut | Shaft | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW2.0-1 | Worm Cut | Shaft | 2.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.0-2 | Worm Cut | Shaft | 2.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.0-3 | Worm Cut | Shaft | 2.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.0-4 | Worm Cut | Shaft | 2.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.5-1 | Worm Cut | Shaft | 2.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.5-2 | Worm Cut | Shaft | 2.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.5-3 | Worm Cut | Shaft | 2.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.5-4 | Worm Cut | Shaft | 2.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW2.0-1S | Worm Cut | Shaft | 2.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.0-2S | Worm Cut | Shaft | 2.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.0-3S | Worm Cut | Shaft | 2.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.0-4S | Worm Cut | Shaft | 2.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.5-1S | Worm Cut | Shaft | 2.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.5-2S | Worm Cut | Shaft | 2.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.5-3S | Worm Cut | Shaft | 2.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.5-4S | Worm Cut | Shaft | 2.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW2.0-1PK | Worm Cut | Shaft | 2.0 | 1 | PEEK GF30 |
| PSW2.0-2PK | Worm Cut | Shaft | 2.0 | 2 | PEEK GF30 |
| PSW2.0-3PK | Worm Cut | Shaft | 2.0 | 3 | PEEK GF30 |
| PSW2.0-4PK | Worm Cut | Shaft | 2.0 | 4 | PEEK GF30 |
| PSW2.0-1DL | Worm Cut | Shaft | 2.0 | 1 | Delrin POM |
| PSW2.0-2DL | Worm Cut | Shaft | 2.0 | 2 | Delrin POM |
| PSW2.0-3DL | Worm Cut | Shaft | 2.0 | 3 | Delrin POM |
| PSW2.0-4DL | Worm Cut | Shaft | 2.0 | 4 | Delrin POM |
| PSW2.5-1PK | Worm Cut | Shaft | 2.5 | 1 | PEEK GF30 |
| PSW2.5-2PK | Worm Cut | Shaft | 2.5 | 2 | PEEK GF30 |
| PSW2.5-3PK | Worm Cut | Shaft | 2.5 | 3 | PEEK GF30 |
| PSW2.5-4PK | Worm Cut | Shaft | 2.5 | 4 | PEEK GF30 |
| PSW2.5-1DL | Worm Cut | Shaft | 2.5 | 1 | Delrin POM |
| PSW2.5-2DL | Worm Cut | Shaft | 2.5 | 2 | Delrin POM |
| PSW2.5-3DL | Worm Cut | Shaft | 2.5 | 3 | Delrin POM |
| PSW2.5-4DL | Worm Cut | Shaft | 2.5 | 4 | Delrin POM |
| PSW2.0-1HG | Worm Cut | Shaft | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW2.0-2HG | Worm Cut | Shaft | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW2.0-3HG | Worm Cut | Shaft | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW2.0-4HG | Worm Cut | Shaft | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PSW3.0-1 | Worm Cut | Shaft | 3.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW3.0-2 | Worm Cut | Shaft | 3.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW3.0-3 | Worm Cut | Shaft | 3.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW3.0-4 | Worm Cut | Shaft | 3.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSW3.0-1S | Worm Cut | Shaft | 3.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW3.0-2S | Worm Cut | Shaft | 3.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW3.0-3S | Worm Cut | Shaft | 3.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW3.0-4S | Worm Cut | Shaft | 3.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PSW3.0-1PK | Worm Cut | Shaft | 3.0 | 1 | PEEK GF30 |
| PSW3.0-2PK | Worm Cut | Shaft | 3.0 | 2 | PEEK GF30 |
| PSW3.0-3PK | Worm Cut | Shaft | 3.0 | 3 | PEEK GF30 |
| PSW3.0-4PK | Worm Cut | Shaft | 3.0 | 4 | PEEK GF30 |
| PSW3.0-1DL | Worm Cut | Shaft | 3.0 | 1 | Delrin POM |
| PSW3.0-2DL | Worm Cut | Shaft | 3.0 | 2 | Delrin POM |
| PSW3.0-3DL | Worm Cut | Shaft | 3.0 | 3 | Delrin POM |
| PSW3.0-4DL | Worm Cut | Shaft | 3.0 | 4 | Delrin POM |
| PW0.5-1 | Worm Cut | Bore | 0.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW0.5-2 | Worm Cut | Bore | 0.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW0.5-3 | Worm Cut | Bore | 0.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW0.5-4 | Worm Cut | Bore | 0.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW0.5-1S | Worm Cut | Bore | 0.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW0.5-2S | Worm Cut | Bore | 0.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW0.5-3S | Worm Cut | Bore | 0.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW0.5-4S | Worm Cut | Bore | 0.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW0.5-1PK | Worm Cut | Bore | 0.5 | 1 | PEEK GF30 |
| PW0.5-2PK | Worm Cut | Bore | 0.5 | 2 | PEEK GF30 |
| PW0.5-3PK | Worm Cut | Bore | 0.5 | 3 | PEEK GF30 |
| PW0.5-4PK | Worm Cut | Bore | 0.5 | 4 | PEEK GF30 |
| PW0.5-1DL | Worm Cut | Bore | 0.5 | 1 | Delrin POM |
| PW0.5-2DL | Worm Cut | Bore | 0.5 | 2 | Delrin POM |
| PW0.5-3DL | Worm Cut | Bore | 0.5 | 3 | Delrin POM |
| PW0.5-4DL | Worm Cut | Bore | 0.5 | 4 | Delrin POM |
| PW0.5-1HG | Worm Cut | Bore | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW0.5-2HG | Worm Cut | Bore | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW0.5-3HG | Worm Cut | Bore | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW0.5-4HG | Worm Cut | Bore | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.0-1 | Worm Cut | Bore | 1.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.0-2 | Worm Cut | Bore | 1.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.0-3 | Worm Cut | Bore | 1.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.0-4 | Worm Cut | Bore | 1.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.5-1 | Worm Cut | Bore | 1.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.5-2 | Worm Cut | Bore | 1.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.5-3 | Worm Cut | Bore | 1.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.5-4 | Worm Cut | Bore | 1.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW1.0-1S | Worm Cut | Bore | 1.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.0-2S | Worm Cut | Bore | 1.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.0-3S | Worm Cut | Bore | 1.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.0-4S | Worm Cut | Bore | 1.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.5-1S | Worm Cut | Bore | 1.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.5-2S | Worm Cut | Bore | 1.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.5-3S | Worm Cut | Bore | 1.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.5-4S | Worm Cut | Bore | 1.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW1.0-1PK | Worm Cut | Bore | 1.0 | 1 | PEEK GF30 |
| PW1.0-2PK | Worm Cut | Bore | 1.0 | 2 | PEEK GF30 |
| PW1.0-3PK | Worm Cut | Bore | 1.0 | 3 | PEEK GF30 |
| PW1.0-4PK | Worm Cut | Bore | 1.0 | 4 | PEEK GF30 |
| PW1.0-1DL | Worm Cut | Bore | 1.0 | 1 | Delrin POM |
| PW1.0-2DL | Worm Cut | Bore | 1.0 | 2 | Delrin POM |
| PW1.0-3DL | Worm Cut | Bore | 1.0 | 3 | Delrin POM |
| PW1.0-4DL | Worm Cut | Bore | 1.0 | 4 | Delrin POM |
| PW1.5-1PK | Worm Cut | Bore | 1.5 | 1 | PEEK GF30 |
| PW1.5-2PK | Worm Cut | Bore | 1.5 | 2 | PEEK GF30 |
| PW1.5-3PK | Worm Cut | Bore | 1.5 | 3 | PEEK GF30 |
| PW1.5-4PK | Worm Cut | Bore | 1.5 | 4 | PEEK GF30 |
| PW1.5-1DL | Worm Cut | Bore | 1.5 | 1 | Delrin POM |
| PW1.5-2DL | Worm Cut | Bore | 1.5 | 2 | Delrin POM |
| PW1.5-3DL | Worm Cut | Bore | 1.5 | 3 | Delrin POM |
| PW1.5-4DL | Worm Cut | Bore | 1.5 | 4 | Delrin POM |
| PW1.0-1HG | Worm Cut | Bore | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.0-2HG | Worm Cut | Bore | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.0-3HG | Worm Cut | Bore | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.0-4HG | Worm Cut | Bore | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.5-1HG | Worm Cut | Bore | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.5-2HG | Worm Cut | Bore | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.5-3HG | Worm Cut | Bore | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW1.5-4HG | Worm Cut | Bore | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW2.0-1 | Worm Cut | Bore | 2.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.0-2 | Worm Cut | Bore | 2.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.0-3 | Worm Cut | Bore | 2.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.0-4 | Worm Cut | Bore | 2.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.5-1 | Worm Cut | Bore | 2.5 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.5-2 | Worm Cut | Bore | 2.5 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.5-3 | Worm Cut | Bore | 2.5 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.5-4 | Worm Cut | Bore | 2.5 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW2.0-1S | Worm Cut | Bore | 2.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.0-2S | Worm Cut | Bore | 2.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.0-3S | Worm Cut | Bore | 2.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.0-4S | Worm Cut | Bore | 2.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.5-1S | Worm Cut | Bore | 2.5 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.5-2S | Worm Cut | Bore | 2.5 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.5-3S | Worm Cut | Bore | 2.5 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.5-4S | Worm Cut | Bore | 2.5 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW2.0-1PK | Worm Cut | Bore | 2.0 | 1 | PEEK GF30 |
| PW2.0-2PK | Worm Cut | Bore | 2.0 | 2 | PEEK GF30 |
| PW2.0-3PK | Worm Cut | Bore | 2.0 | 3 | PEEK GF30 |
| PW2.0-4PK | Worm Cut | Bore | 2.0 | 4 | PEEK GF30 |
| PW2.0-1DL | Worm Cut | Bore | 2.0 | 1 | Delrin POM |
| PW2.0-2DL | Worm Cut | Bore | 2.0 | 2 | Delrin POM |
| PW2.0-3DL | Worm Cut | Bore | 2.0 | 3 | Delrin POM |
| PW2.0-4DL | Worm Cut | Bore | 2.0 | 4 | Delrin POM |
| PW2.5-1PK | Worm Cut | Bore | 2.5 | 1 | PEEK GF30 |
| PW2.5-2PK | Worm Cut | Bore | 2.5 | 2 | PEEK GF30 |
| PW2.5-3PK | Worm Cut | Bore | 2.5 | 3 | PEEK GF30 |
| PW2.5-4PK | Worm Cut | Bore | 2.5 | 4 | PEEK GF30 |
| PW2.5-1DL | Worm Cut | Bore | 2.5 | 1 | Delrin POM |
| PW2.5-2DL | Worm Cut | Bore | 2.5 | 2 | Delrin POM |
| PW2.5-3DL | Worm Cut | Bore | 2.5 | 3 | Delrin POM |
| PW2.5-4DL | Worm Cut | Bore | 2.5 | 4 | Delrin POM |
| PW2.0-1HG | Worm Cut | Bore | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW2.0-2HG | Worm Cut | Bore | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW2.0-3HG | Worm Cut | Bore | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW2.0-4HG | Worm Cut | Bore | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2, Steel Case Hard 57Hrc |
| PW3.0-1 | Worm Cut | Bore | 3.0 | 1 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW3.0-2 | Worm Cut | Bore | 3.0 | 2 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW3.0-3 | Worm Cut | Bore | 3.0 | 3 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW3.0-4 | Worm Cut | Bore | 3.0 | 4 | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PW3.0-1S | Worm Cut | Bore | 3.0 | 1 | AISI 303 (EN 1.4305) Stainless Steel |
| PW3.0-2S | Worm Cut | Bore | 3.0 | 2 | AISI 303 (EN 1.4305) Stainless Steel |
| PW3.0-3S | Worm Cut | Bore | 3.0 | 3 | AISI 303 (EN 1.4305) Stainless Steel |
| PW3.0-4S | Worm Cut | Bore | 3.0 | 4 | AISI 303 (EN 1.4305) Stainless Steel |
| PW3.0-1PK | Worm Cut | Bore | 3.0 | 1 | PEEK GF30 |
| PW3.0-2PK | Worm Cut | Bore | 3.0 | 2 | PEEK GF30 |
| PW3.0-3PK | Worm Cut | Bore | 3.0 | 3 | PEEK GF30 |
| PW3.0-4PK | Worm Cut | Bore | 3.0 | 4 | PEEK GF30 |
| PW3.0-1DL | Worm Cut | Bore | 3.0 | 1 | Delrin POM |
| PW3.0-2DL | Worm Cut | Bore | 3.0 | 2 | Delrin POM |
| PW3.0-3DL | Worm Cut | Bore | 3.0 | 3 | Delrin POM |
| PW3.0-4DL | Worm Cut | Bore | 3.0 | 4 | Delrin POM |
| UPSW0.5-1H | Worm Ground | Shaft | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-2H | Worm Ground | Shaft | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-3H | Worm Ground | Shaft | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-4H | Worm Ground | Shaft | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW0.5-1PH | Worm Ground | Shaft | 0.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-2PH | Worm Ground | Shaft | 0.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-3PH | Worm Ground | Shaft | 0.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW0.5-4PH | Worm Ground | Shaft | 0.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-1H | Worm Ground | Shaft | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-2H | Worm Ground | Shaft | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-3H | Worm Ground | Shaft | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-4H | Worm Ground | Shaft | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-1H | Worm Ground | Shaft | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-2H | Worm Ground | Shaft | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-3H | Worm Ground | Shaft | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.5-4H | Worm Ground | Shaft | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW1.0-1PH | Worm Ground | Shaft | 1.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-2PH | Worm Ground | Shaft | 1.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-3PH | Worm Ground | Shaft | 1.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.0-4PH | Worm Ground | Shaft | 1.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-1PH | Worm Ground | Shaft | 1.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-2PH | Worm Ground | Shaft | 1.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-3PH | Worm Ground | Shaft | 1.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW1.5-4PH | Worm Ground | Shaft | 1.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-1H | Worm Ground | Shaft | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-2H | Worm Ground | Shaft | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-3H | Worm Ground | Shaft | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-4H | Worm Ground | Shaft | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-1H | Worm Ground | Shaft | 2.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-2H | Worm Ground | Shaft | 2.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-3H | Worm Ground | Shaft | 2.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.5-4H | Worm Ground | Shaft | 2.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW2.0-1PH | Worm Ground | Shaft | 2.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-2PH | Worm Ground | Shaft | 2.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-3PH | Worm Ground | Shaft | 2.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.0-4PH | Worm Ground | Shaft | 2.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-1PH | Worm Ground | Shaft | 2.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-2PH | Worm Ground | Shaft | 2.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-3PH | Worm Ground | Shaft | 2.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW2.5-4PH | Worm Ground | Shaft | 2.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-1H | Worm Ground | Shaft | 3.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-2H | Worm Ground | Shaft | 3.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-3H | Worm Ground | Shaft | 3.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-4H | Worm Ground | Shaft | 3.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPSW3.0-1PH | Worm Ground | Shaft | 3.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-2PH | Worm Ground | Shaft | 3.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-3PH | Worm Ground | Shaft | 3.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPSW3.0-4PH | Worm Ground | Shaft | 3.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-1H | Worm Ground | Bore | 0.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-2H | Worm Ground | Bore | 0.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-3H | Worm Ground | Bore | 0.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-4H | Worm Ground | Bore | 0.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW0.5-1PH | Worm Ground | Bore | 0.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-2PH | Worm Ground | Bore | 0.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-3PH | Worm Ground | Bore | 0.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW0.5-4PH | Worm Ground | Bore | 0.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-1H | Worm Ground | Bore | 1.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-2H | Worm Ground | Bore | 1.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-3H | Worm Ground | Bore | 1.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-4H | Worm Ground | Bore | 1.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-1H | Worm Ground | Bore | 1.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-2H | Worm Ground | Bore | 1.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-3H | Worm Ground | Bore | 1.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.5-4H | Worm Ground | Bore | 1.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW1.0-1PH | Worm Ground | Bore | 1.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-2PH | Worm Ground | Bore | 1.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-3PH | Worm Ground | Bore | 1.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.0-4PH | Worm Ground | Bore | 1.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-1PH | Worm Ground | Bore | 1.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-2PH | Worm Ground | Bore | 1.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-3PH | Worm Ground | Bore | 1.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW1.5-4PH | Worm Ground | Bore | 1.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-1H | Worm Ground | Bore | 2.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-2H | Worm Ground | Bore | 2.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-3H | Worm Ground | Bore | 2.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-4H | Worm Ground | Bore | 2.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-1H | Worm Ground | Bore | 2.5 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-2H | Worm Ground | Bore | 2.5 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-3H | Worm Ground | Bore | 2.5 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.5-4H | Worm Ground | Bore | 2.5 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW2.0-1PH | Worm Ground | Bore | 2.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-2PH | Worm Ground | Bore | 2.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-3PH | Worm Ground | Bore | 2.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.0-4PH | Worm Ground | Bore | 2.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-1PH | Worm Ground | Bore | 2.5 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-2PH | Worm Ground | Bore | 2.5 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-3PH | Worm Ground | Bore | 2.5 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW2.5-4PH | Worm Ground | Bore | 2.5 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-1H | Worm Ground | Bore | 3.0 | 1 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-2H | Worm Ground | Bore | 3.0 | 2 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-3H | Worm Ground | Bore | 3.0 | 3 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-4H | Worm Ground | Bore | 3.0 | 4 | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPW3.0-1PH | Worm Ground | Bore | 3.0 | 1 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-2PH | Worm Ground | Bore | 3.0 | 2 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-3PH | Worm Ground | Bore | 3.0 | 3 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPW3.0-4PH | Worm Ground | Bore | 3.0 | 4 | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
