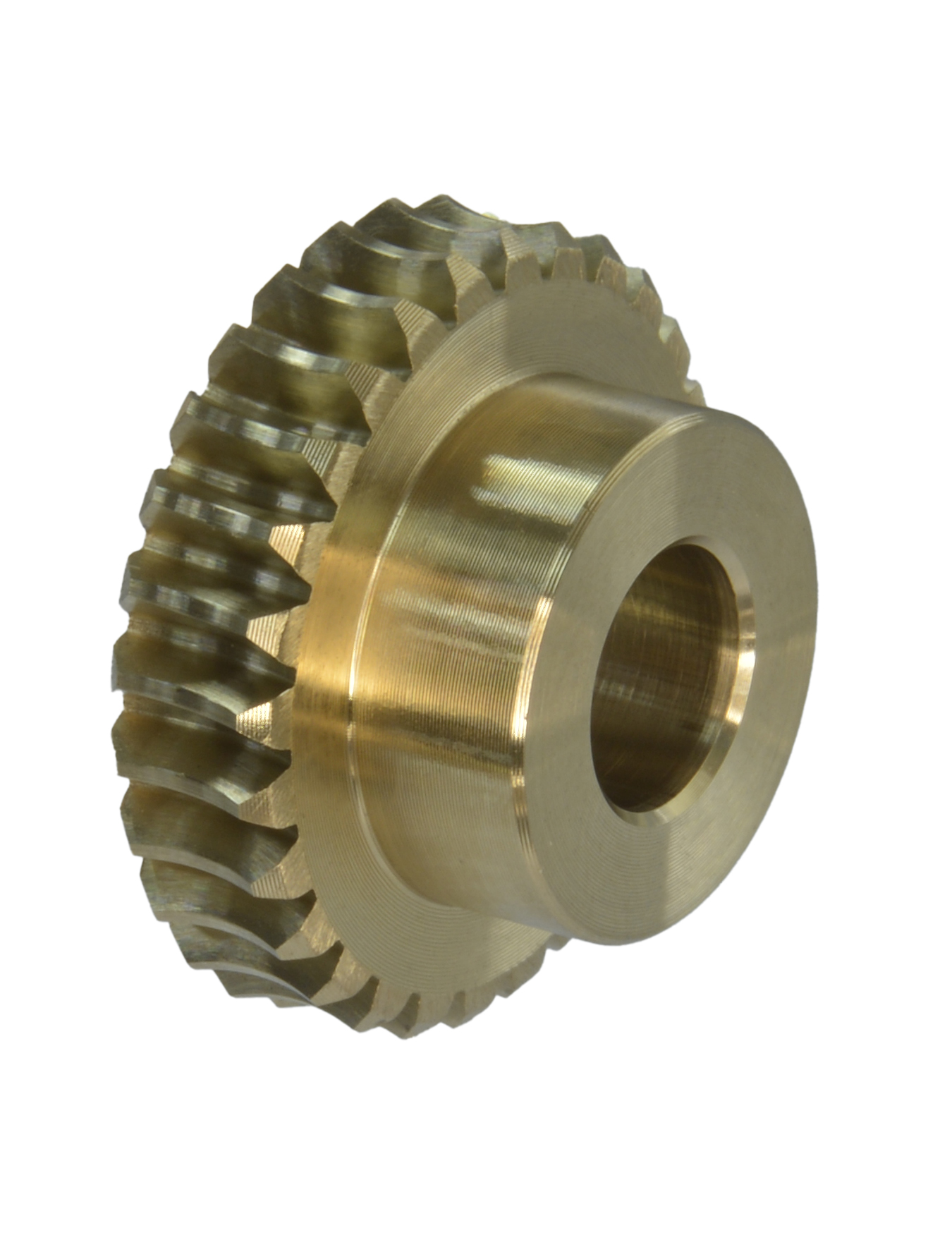

    Precision Wormwheels

    Worm & Wormwheel Ratios.
    The number of starts [z1] on the worm and [z] teeth on the wheel  give you the ratio.

    Examples:-
    PWG2.5-15/1     -  1 [z1] Start Worm   15z  Wheel  Ratio [u] i=    15/1 = 15:1
    PWG0.5-100/2    - 2 [z1] Start Worm  100z  Wheel  Ratio [u] i= 100/2  = 50:1
    The wormwheels mate with the same number of start [z1] worm.

    We can supply to standard, modified or customers drawings and specifications with full traceability, first article inspection reports (F.A.I.R), and inspection reports.

    View as Grid List
    Sort by
    Display per page
    Worms for worm wheels Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    PSW0.5-1

    PSW0.5-1
    0.5 Module Steel 817M40T (28HRC) 1 Start Precision Shaft Worm 20 deg. PA - Quality Grade 6e DIN 3974/58405
    Worm Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    PWG0.5-100-1

    PWG0.5-100-1
    0.5 Axial Module Bronze CA104 1 Start Precision Wormwheel 20 deg. PA - Quality Grade 7e DIN 3974/58405
    Ondrives Precision Gears and Gearboxes Part number  PSW0.5-1DL

    PSW0.5-1DL

    PSW0.5-1DL
    0.5 Module Delrin POM (White) 1 Start Precision Shaft Worm 20 deg. PA - Quality Grade 7e DIN 3974/58405
    Worms for worm wheels Gears Precision from Ondrives UK precision gear and gearbox manufacturer

    PSW0.5-1HG

    PSW0.5-1HG
    0.5 Module Steel 805M20 (58HRC) 1 Start Precision Shaft Worm 20 deg. PA - Quality Grade 6e DIN 3974/58405
    Ondrives Precision Gears and Gearboxes Part number  PSW0.5-1PK

    PSW0.5-1PK

    PSW0.5-1PK
    0.5 Module PEEK GF30® (Light Brown) 1 Start Precision Shaft Worm 20 deg. PA - Quality Grade 7e DIN 3974/58405
    Ondrives Precision Gears and Gearboxes Part number  PSW0.5-1S

    PSW0.5-1S

    PSW0.5-1S
    0.5 Module 303 Stainless Steel 1 Start Precision Shaft Worm 20 deg. PA - Quality Grade 6e DIN 3974/58405
