  2. PXHG : 1.0 Mod Crossed Helical Gears

PXHG1.0-55R

Ondrives Precision Gears and Gearboxes Part number PXHG1.0-55R

PXHG1.0-55R

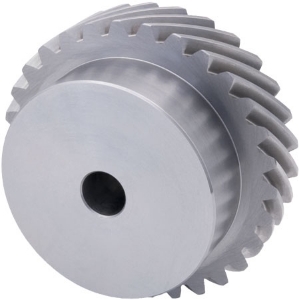

1.0 Module Steel 817M40T (28HRC) 45 deg. Right Hand Helix Precision Crossed Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PXHG1.0-55R Ondrives Precision Gears and Gearboxes Part number PXHG1.0-55R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min0.88
Ref. Diameter [d]77.78
Bore Diameter [di] H710
Tip Diameter [da]79.78
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.098
Backlash (mm) jt.e (max)0.242
Inertia [I] kgm²3.38 x 10-4
Mass [kg]0.542

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min0.88
Ref. Diameter [d]77.78
Bore Diameter [di] H710
Tip Diameter [da]79.78
Hub Diameter [BD]50
Backlash (mm) jt.i (min)0.098
Backlash (mm) jt.e (max)0.242
Inertia [I] kgm²3.38 x 10-4
Mass [kg]0.542
