  2. PXHG : 1.5 Mod Crossed Helical Gears

PXHG1.5-38L

Ondrives Precision Gears and Gearboxes Part number PXHG1.5-38L

PXHG1.5-38L

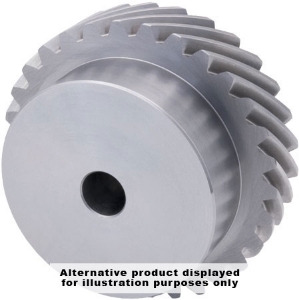

1.5 Module Steel 817M40T (28HRC) 45 deg. Left Hand Helix Precision Crossed Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PXHG1.5-38L Ondrives Precision Gears and Gearboxes Part number PXHG1.5-38L

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Helix Angle45°
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]38
Torque T₂ [Nm] n1 100 r/min1.38
Ref. Diameter [d]80.61
Bore Diameter [di] H712
Tip Diameter [da]83.61
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.244
Inertia [I] kgm²5.89 x 10-4
Mass [kg]0.85

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Helix Angle45°
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]38
Torque T₂ [Nm] n1 100 r/min1.38
Ref. Diameter [d]80.61
Bore Diameter [di] H712
Tip Diameter [da]83.61
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.244
Inertia [I] kgm²5.89 x 10-4
Mass [kg]0.85
