PXHG2.5-35RH

Ondrives Precision Gears and Gearboxes Part number PXHG2.5-35RH

PXHG2.5-35RH

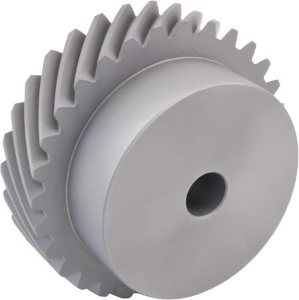

2.5 Module Case Hardened 805M20 (58HRC) 45 deg. Right Hand Helix Precision Crossed Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PXHG2.5-35RH Ondrives Precision Gears and Gearboxes Part number PXHG2.5-35RH

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min12.5
Ref. Diameter [d]123.74
Bore Diameter [di] H725
Tip Diameter [da]128.74
Hub Diameter [BD]65
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.247
Inertia [I] kgm²4.81 x 10-3
Mass [kg]2.8

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min12.5
Ref. Diameter [d]123.74
Bore Diameter [di] H725
Tip Diameter [da]128.74
Hub Diameter [BD]65
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.247
Inertia [I] kgm²4.81 x 10-3
Mass [kg]2.8
