  2. PXHG : 3.0 Mod Crossed Helical Gears

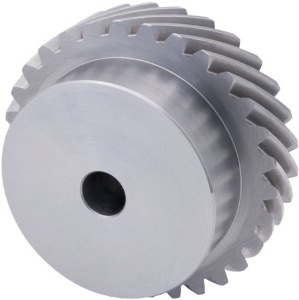

PXHG3.0-15R

Ondrives Precision Gears and Gearboxes Part number PXHG3.0-15R

PXHG3.0-15R

3.0 Module Steel 817M40T (28HRC) 45 deg. Right Hand Helix Precision Crossed Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PXHG3.0-15R Ondrives Precision Gears and Gearboxes Part number PXHG3.0-15R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min2.31
Ref. Diameter [d]63.64
Bore Diameter [di] H716
Tip Diameter [da]69.64
Hub Diameter [BD]45
Backlash (mm) jt.i (min)0.098
Backlash (mm) jt.e (max)0.242
Inertia [I] kgm²4.78 x 10-4
Mass [kg]1.02

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min2.31
Ref. Diameter [d]63.64
Bore Diameter [di] H716
Tip Diameter [da]69.64
Hub Diameter [BD]45
Backlash (mm) jt.i (min)0.098
Backlash (mm) jt.e (max)0.242
Inertia [I] kgm²4.78 x 10-4
Mass [kg]1.02
