PXHG3.0-22R

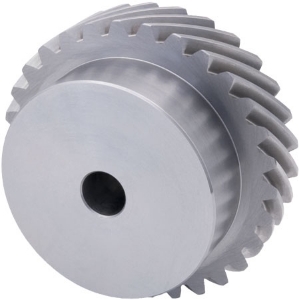

Ondrives Precision Gears and Gearboxes Part number PXHG3.0-22R

PXHG3.0-22R

3.0 Module Steel 817M40T (28HRC) 45 deg. Right Hand Helix Precision Crossed Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PXHG3.0-22R Ondrives Precision Gears and Gearboxes Part number PXHG3.0-22R

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min3.19
Ref. Diameter [d]93.34
Bore Diameter [di] H720
Tip Diameter [da]99.34
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.244
Inertia [I] kgm²1.96 x 10-3
Mass [kg]2.006

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionRight Hand
Helix Angle45°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min3.19
Ref. Diameter [d]93.34
Bore Diameter [di] H720
Tip Diameter [da]99.34
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.244
Inertia [I] kgm²1.96 x 10-3
Mass [kg]2.006
