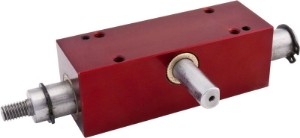

RPA12-20

Actuator box, 8mm input shaft, 12mm output shaft, 20mm stroke, 17.0Kg Load, 0.64Nm

Product specifications

Output Backlash j	≤2°
Output Shaft Diameter	12
Input Shaft Ø	8
Stroke	20
Max. Torque Input at 100 Rpm Nm	0.64
Max. Load Output (Kg)	17
Angular Movement for 1mm Travel	11.93°
Angular Movement for Standard Travel	238.7°
Lubrication Grease	Shell Gadus S5 V42P 2.5
