RPB30

Ondrives Precision Gears and Gearboxes Part number RPB30

RPB30

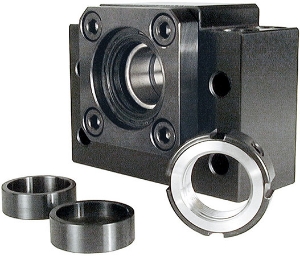

Simple Support Steel Ballscrew Bearing Unit with Angular Contact Bearing
Ondrives Precision Gears and Gearboxes Part number RPB30 Ondrives Precision Gears and Gearboxes Part number RPB30 Ondrives Precision Gears and Gearboxes Part number RPB30

Product specifications

Bore Diameter [d]30
Dimension [E]33
Dimension [P]102
Diameter [d2]11
Dimension [X]14
Dimension [Y]20
Dimension [Z]13
Dimension [L]45
Diameter [d3]30
Supported Bearing7006DFGMP5
Dimension [C1]23
Dimension [C2]11
Dimension [B]128
Dimension [k] [H]89
Dimension [B1]76
Dimension [H1]78
Dimension [b] ±0.0264
Dimension [h] ±0.0251

Product specifications

Bore Diameter [d]30
Dimension [E]33
Dimension [P]102
Diameter [d2]11
Dimension [X]14
Dimension [Y]20
Dimension [Z]13
Dimension [L]45
Diameter [d3]30
Supported Bearing7006DFGMP5
Dimension [C1]23
Dimension [C2]11
Dimension [B]128
Dimension [k] [H]89
Dimension [B1]76
Dimension [H1]78
Dimension [b] ±0.0264
Dimension [h] ±0.0251
