RTK-M-24
RTK-M-24

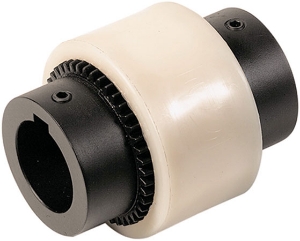

Bowex Toothed Driven Coupling with Steel Hubs, Double Cardonic Curved Tooth, Nylon Sleeve
Product specifications
Max. Bore Diameter [d1] & [d2]
24
Dimension [L1]
26
Dimension [b]
26
Dimension [E]
4
Dimension [L]
56
Dimension [LH]
41
Dimension [M]
7.50
Dimension [N]
7.5
Dimension [L3]
14
Diameter [D]
36
Diameter [DH]
53
Set Screw
M5
Dimension [T]
6
Max. Speed [rpm]
10600
Torque (Nm)
20
Max. Torque (Nm)
60
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.35
Angular Displacement at 1500 rpm [a°]
±0.9°
Max. Moment of Inertia (kgcm²)
0.93
Mass [kg]
0.32
Coupling Size
24
Specifications
Overview
Product specifications
Max. Bore Diameter [d1] & [d2]
24
Dimension [L1]
26
Dimension [b]
26
Dimension [E]
4
Dimension [L]
56
Dimension [LH]
41
Dimension [M]
7.50
Dimension [N]
7.5
Dimension [L3]
14
Diameter [D]
36
Diameter [DH]
53
Set Screw
M5
Dimension [T]
6
Max. Speed [rpm]
10600
Torque (Nm)
20
Max. Torque (Nm)
60
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.35
Angular Displacement at 1500 rpm [a°]
±0.9°
Max. Moment of Inertia (kgcm²)
0.93
Mass [kg]
0.32
Coupling Size
24
