RTK-M-28
RTK-M-28

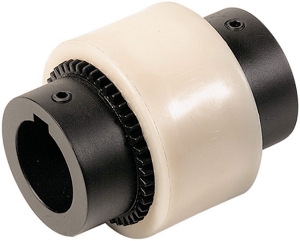

Bowex Toothed Driven Coupling with Steel Hubs, Double Cardonic Curved Tooth, Nylon Sleeve
Product specifications
Max. Bore Diameter [d1] & [d2]
28
Dimension [L1]
40
Dimension [b]
40
Dimension [E]
4
Dimension [L]
84
Dimension [LH]
46
Dimension [M]
19
Dimension [N]
19
Dimension [L3]
13
Diameter [D]
44
Diameter [DH]
65
Set Screw
M8
Dimension [T]
10
Max. Speed [rpm]
8500
Torque (Nm)
45
Max. Torque (Nm)
135
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.35
Angular Displacement at 1500 rpm [a°]
±0.9°
Max. Moment of Inertia (kgcm²)
3.09
Mass [kg]
0.74
Coupling Size
28
Specifications
Overview
Product specifications
Max. Bore Diameter [d1] & [d2]
28
Dimension [L1]
40
Dimension [b]
40
Dimension [E]
4
Dimension [L]
84
Dimension [LH]
46
Dimension [M]
19
Dimension [N]
19
Dimension [L3]
13
Diameter [D]
44
Diameter [DH]
65
Set Screw
M8
Dimension [T]
10
Max. Speed [rpm]
8500
Torque (Nm)
45
Max. Torque (Nm)
135
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.35
Angular Displacement at 1500 rpm [a°]
±0.9°
Max. Moment of Inertia (kgcm²)
3.09
Mass [kg]
0.74
Coupling Size
28
