RTK-SS-48
RTK-SS-48

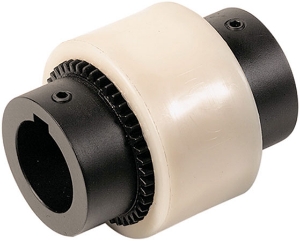

Bowex Toothed Driven Coupling with Stainless Steel Hubs, Double Cardonic Curved Tooth, Polyamide Sleeve
Product specifications
Max. Bore Diameter [d1] & [d2]
48
Dimension [L1]
50
Dimension [b]
50
Dimension [E]
4
Dimension [L]
104
Dimension [LH]
50
Dimension [M]
27
Dimension [N]
27
Dimension [L3]
13
Diameter [D]
68
Diameter [DH]
95
Set Screw
M8
Dimension [T]
10
Max. Speed [rpm]
5600
Torque (Nm)
140
Max. Torque (Nm)
420
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.40
Angular Displacement at 1500 rpm [a°]
±0.9°
Coupling Size
48
Specifications
Overview
Product specifications
Max. Bore Diameter [d1] & [d2]
48
Dimension [L1]
50
Dimension [b]
50
Dimension [E]
4
Dimension [L]
104
Dimension [LH]
50
Dimension [M]
27
Dimension [N]
27
Dimension [L3]
13
Diameter [D]
68
Diameter [DH]
95
Set Screw
M8
Dimension [T]
10
Max. Speed [rpm]
5600
Torque (Nm)
140
Max. Torque (Nm)
420
Max. Axial Displacement
±1
Radial Displacement at 1500 rpm (mm)
±0.40
Angular Displacement at 1500 rpm [a°]
±0.9°
Coupling Size
48
