SCS50.8-14

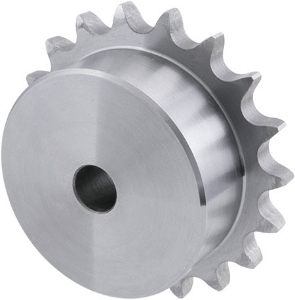

Ondrives Precision Gears and Gearboxes Part number SCS50.8-14

SCS50.8-14

Bossed C43 UNI 7847 Carbon Steel Simplex Sprockets, 2" (50.8mm) Pitch (ISO 32B-1), 29.21mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number SCS50.8-14 Ondrives Precision Gears and Gearboxes Part number SCS50.8-14

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.32B-1
Pitch/Lead50.8
No. of Teeth [z]14
Tip Diameter [de]251
Ref. Diameter [dp]228.29
Hub Diameter [BD]145
Bore Diameter [di]30
Sprocket Width [E]80
Mass kg14.25

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.32B-1
Pitch/Lead50.8
No. of Teeth [z]14
Tip Diameter [de]251
Ref. Diameter [dp]228.29
Hub Diameter [BD]145
Bore Diameter [di]30
Sprocket Width [E]80
Mass kg14.25
