Threaded Fasteners
Precision Socket Head Shoulder Screws
SHS316-16-80
SHS316-16-80

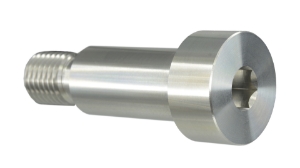

AISI 316 (EN 1.4401) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø20 x 80mm Shoulder. M16 x 22mm Thread.
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M16
Diameter [ds] +0.005/-0.025
19.975
Dimension [L] +0.05/-0
80.013
Diameter [Dk]
30
Dimension [k] [H]
14
Dimension [b]
22
Dimension [s]
10
Dimension [t]
9
Specifications
Product PDF
CAD
Overview
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M16
Diameter [ds] +0.005/-0.025
19.975
Dimension [L] +0.05/-0
80.013
Diameter [Dk]
30
Dimension [k] [H]
14
Dimension [b]
22
Dimension [s]
10
Dimension [t]
9
