Threaded Fasteners
Precision Socket Head Shoulder Screws
SHS316-4-12
SHS316-4-12

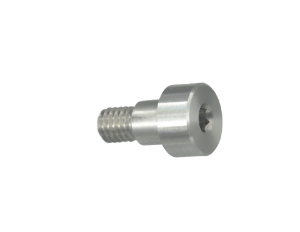

AISI 316 (EN 1.4401) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø5 x 12mm Shoulder. M4 x 5mm Thread.
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M4
Diameter [ds] +0.005/-0.025
4.987
Dimension [L] +0.05/-0
12.013
Diameter [Dk]
8
Dimension [k] [H]
4
Dimension [b]
5
Dimension [s]
2.5
Dimension [t]
2
Specifications
Product PDF
CAD
Overview
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M4
Diameter [ds] +0.005/-0.025
4.987
Dimension [L] +0.05/-0
12.013
Diameter [Dk]
8
Dimension [k] [H]
4
Dimension [b]
5
Dimension [s]
2.5
Dimension [t]
2
