SHSS4-5

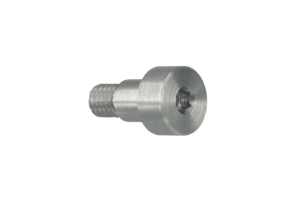

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHSS4-5

AISI 416 (EN 1.4005) Stainless Steel Precision Shoulder Screw. Hexagon Socket Head. Ø5 x 5mm Shoulder. M4 x 5mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Thread [d]M4
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Diameter [ds] +0.005/-0.0254.987
Dimension [L] +0.05/-05.013
Diameter [Dk]8
Dimension [k] [H]4
Dimension [b]5
Dimension [s]2.5
Dimension [t]0.08

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Thread [d]M4
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Diameter [ds] +0.005/-0.0254.987
Dimension [L] +0.05/-05.013
Diameter [Dk]8
Dimension [k] [H]4
Dimension [b]5
Dimension [s]2.5
Dimension [t]0.08
