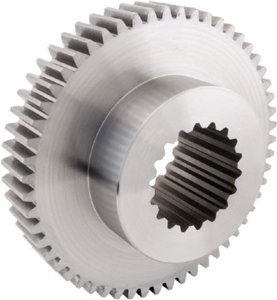

PSGS3.0-27 Spur Gear

Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSGS3.0-27 Spur Gear

3.0 Module Steel 817M40T (28HRC) Precision Splined Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min85.3
Ref. Diameter [d]81
Tip Diameter [da]87
Spline Din 5480 GearsN32x2.00x30x14x9H
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.21 x 10-3
Mass [kg]1.664

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]27
Torque T₂ [Nm] n1 100 r/min85.3
Ref. Diameter [d]81
Tip Diameter [da]87
Spline Din 5480 GearsN32x2.00x30x14x9H
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.21 x 10-3
Mass [kg]1.664
