UPHGS2.0-40RH

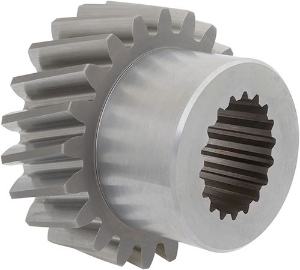

Ondrives Precision Gears and Gearboxes Part number UPHGS2.0-40RH

UPHGS2.0-40RH

2.0 Module Case Hardened 805M20 (58-62HRC) 15 deg. Right Hand Helix Splined Ground Parallel Helical Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPHGS2.0-40RH Ondrives Precision Gears and Gearboxes Part number UPHGS2.0-40RH

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionRight Hand
Helix Angle15°
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]40
Torque T₂ [Nm] n1 500 r/min367.56
Ref. Diameter [d]82.82
Spline Din 5480 GearsN30x1.25x30x22x9H
Tip Diameter [da]86.82
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.104
Inertia [I] kgm²8.37 x 10-4
Mass kg0.989

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionRight Hand
Helix Angle15°
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]40
Torque T₂ [Nm] n1 500 r/min367.56
Ref. Diameter [d]82.82
Spline Din 5480 GearsN30x1.25x30x22x9H
Tip Diameter [da]86.82
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.027
Backlash (mm) jt.e (max)0.104
Inertia [I] kgm²8.37 x 10-4
Mass kg0.989
