UPHGS3.0-42LPH

Ondrives Precision Gears and Gearboxes Part number UPHGS3.0-42LPH

UPHGS3.0-42LPH

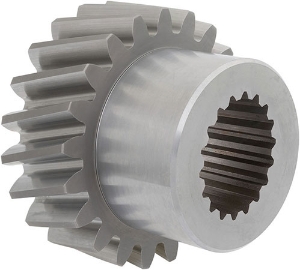

3.0 Module 17-4PH Stainless Steel (38-40HRC) 15 deg. Left Hand Helix Splined Ground Parallel Helical Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number UPHGS3.0-42LPH Ondrives Precision Gears and Gearboxes Part number UPHGS3.0-42LPH

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionLeft Hand
Helix Angle15°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 500 r/min1041.84
Ref. Diameter [d]130.45
Spline Din 5480 GearsN40x2.00x30x18x9H
Tip Diameter [da]136.45
Hub Diameter [BD]80
Backlash (mm) jt.i (min)0.039
Backlash (mm) jt.e (max)0.131
Inertia [I] kgm²7.41 x 10-3
Mass kg3.681

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Gear Tooth TypeHelical Ground
Helix DirectionLeft Hand
Helix Angle15°
Normal Module mn3
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 500 r/min1041.84
Ref. Diameter [d]130.45
Spline Din 5480 GearsN40x2.00x30x18x9H
Tip Diameter [da]136.45
Hub Diameter [BD]80
Backlash (mm) jt.i (min)0.039
Backlash (mm) jt.e (max)0.131
Inertia [I] kgm²7.41 x 10-3
Mass kg3.681
