SPLW12.7/7.75-55

sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

SPLW12.7/7.75-55

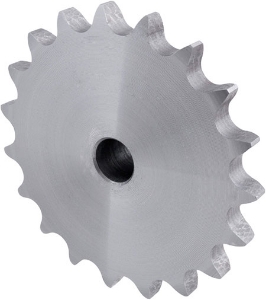

Plain C43 UNI 7847 Carbon Steel Simplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-1), 8.51mm Roller Diameter
sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-1
Pitch/Lead12.7
No. of Teeth [z]55
Tip Diameter [de]229
Ref. Diameter [dp]222.46
Bore Diameter [di]20
Mass [kg]2.1

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.08B-1
Pitch/Lead12.7
No. of Teeth [z]55
Tip Diameter [de]229
Ref. Diameter [dp]222.46
Bore Diameter [di]20
Mass [kg]2.1
