PSG0.5-170TI Spur Gear

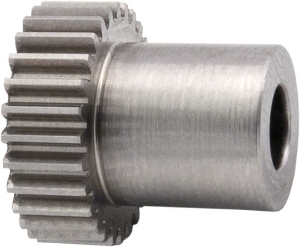

Ondrives Precision Gears and Gearboxes Part number PSG0.5-170TI Spur Gear

PSG0.5-170TI Spur Gear

0.5 Module Titanium Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number PSG0.5-170TI Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG0.5-170TI Spur Gear

Product specifications

Material	Ti-6AI-4V Grade 5 (UNS R56400) Titanium
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	170
Torque T₂ [Nm] n1 100 r/min	2.47
Ref. Diameter [d]	85
Tip Diameter [da]	86
Bore Diameter [di] H7	10
Hub Diameter [BD]	40
Backlash (mm) jt.i (min)	0.047
Backlash (mm) jt.e (max)	0.113
Inertia [I] kgm²	1.24 x 10-4
Mass [kg]	0.175

Product specifications

Material	Ti-6AI-4V Grade 5 (UNS R56400) Titanium
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.5
Pressure Angle	20°
No. of Teeth [z]	170
Torque T₂ [Nm] n1 100 r/min	2.47
Ref. Diameter [d]	85
Tip Diameter [da]	86
Bore Diameter [di] H7	10
Hub Diameter [BD]	40
Backlash (mm) jt.i (min)	0.047
Backlash (mm) jt.e (max)	0.113
Inertia [I] kgm²	1.24 x 10-4
Mass [kg]	0.175
