PSG0.5-55 Spur Gear

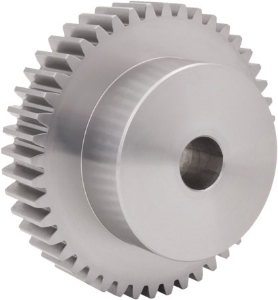

Ondrives Precision Gears and Gearboxes Part number PSG0.5-55 Spur Gear

PSG0.5-55 Spur Gear

0.5 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PSG0.5-55 Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG0.5-55 Spur Gear

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min1.92
Ref. Diameter [d]27.5
Tip Diameter [da]28.5
Bore Diameter [di] H76
Hub Diameter [BD]17
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.097
Inertia [I] kgm²2.81 x 10-6
Mass [kg]0.038

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN584057e
Gear Tooth TypeSpur
Normal Module mn0.5
Pressure Angle20°
No. of Teeth [z]55
Torque T₂ [Nm] n1 100 r/min1.92
Ref. Diameter [d]27.5
Tip Diameter [da]28.5
Bore Diameter [di] H76
Hub Diameter [BD]17
Backlash (mm) jt.i (min)0.046
Backlash (mm) jt.e (max)0.097
Inertia [I] kgm²2.81 x 10-6
Mass [kg]0.038
