PSG0.8-82SL Spur Gear

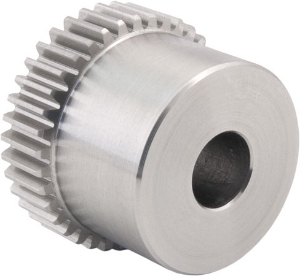

Ondrives Precision Gears and Gearboxes Part number PSG0.8-82SL Spur Gear

PSG0.8-82SL Spur Gear

0.8 Module 316 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e DIN 3961/58405 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number PSG0.8-82SL Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG0.8-82SL Spur Gear

Product specifications

Material	AISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.8
Pressure Angle	20°
No. of Teeth [z]	82
Torque T₂ [Nm] n1 100 r/min	7.58
Ref. Diameter [d]	65.6
Tip Diameter [da]	67.2
Bore Diameter [di] H7	10
Hub Diameter [BD]	50
Backlash (mm) jt.i (min)	0.055
Backlash (mm) jt.e (max)	0.122
Inertia [I] kgm²	1.61 x 10-4
Mass [kg]	0.354

Product specifications

Material	AISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN58405	7e
Gear Tooth Type	Spur
Normal Module mn	0.8
Pressure Angle	20°
No. of Teeth [z]	82
Torque T₂ [Nm] n1 100 r/min	7.58
Ref. Diameter [d]	65.6
Tip Diameter [da]	67.2
Bore Diameter [di] H7	10
Hub Diameter [BD]	50
Backlash (mm) jt.i (min)	0.055
Backlash (mm) jt.e (max)	0.122
Inertia [I] kgm²	1.61 x 10-4
Mass [kg]	0.354
