PSG1.0-22PK Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG1.0-22PK Spur Gear

PSG1.0-22PK Spur Gear

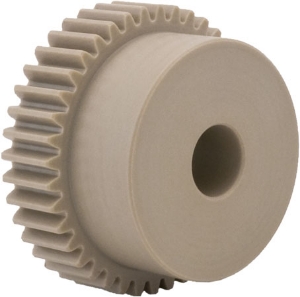

1.0 Module PEEK GF30® (Light Brown) Precision Spur Gears 20° PA Quality Grade 8e25 DIN 3961/58405 (AGMA Q9)
Ondrives Precision Gears and Gearboxes Part number PSG1.0-22PK Spur Gear Ondrives Precision Gears and Gearboxes Part number PSG1.0-22PK Spur Gear

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min1.61
Ref. Diameter [d]22
Tip Diameter [da]24
Bore Diameter [di] H75
Hub Diameter [BD]15
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Mass [kg]0.008

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn1
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min1.61
Ref. Diameter [d]22
Tip Diameter [da]24
Bore Diameter [di] H75
Hub Diameter [BD]15
Backlash (mm) jt.i (min)0.052
Backlash (mm) jt.e (max)0.128
Mass [kg]0.008
