PSG10.0-80H

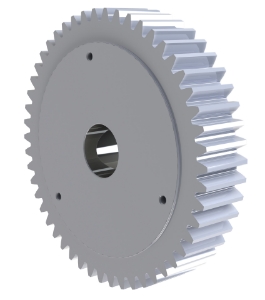

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG10.0-80H

10.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn10
Pressure Angle20°
No. of Teeth [z]80
Torque T₂ [Nm] n1 100 r/min46417
Ref. Diameter [d]800
Tip Diameter [da]820
Bore Diameter [di] H7150
Hub Diameter [BD]700
Backlash (mm) jt.i (min)0.127
Backlash (mm) jt.e (max)0.293
Inertia [I] kgm²33.10
Mass [kg]407.39

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn10
Pressure Angle20°
No. of Teeth [z]80
Torque T₂ [Nm] n1 100 r/min46417
Ref. Diameter [d]800
Tip Diameter [da]820
Bore Diameter [di] H7150
Hub Diameter [BD]700
Backlash (mm) jt.i (min)0.127
Backlash (mm) jt.e (max)0.293
Inertia [I] kgm²33.10
Mass [kg]407.39
