PSG12.0-68
PSG12.0-68

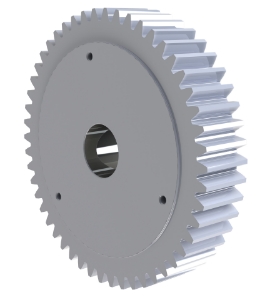

12.0 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Product specifications
Material
817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN3967
7e25
Gear Tooth Type
Spur
Normal Module mn
12
Pressure Angle
20°
No. of Teeth [z]
68
Torque T₂ [Nm] n1 100 r/min
21329
Ref. Diameter [d]
816
Tip Diameter [da]
840
Bore Diameter [di] H7
200
Hub Diameter [BD]
650
Backlash (mm) jt.i (min)
0.127
Backlash (mm) jt.e (max)
0.293
Inertia [I] kgm²
43.10
Mass [kg]
517.74
Specifications
Product PDF
Technical
Overview
Product specifications
Material
817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN3967
7e25
Gear Tooth Type
Spur
Normal Module mn
12
Pressure Angle
20°
No. of Teeth [z]
68
Torque T₂ [Nm] n1 100 r/min
21329
Ref. Diameter [d]
816
Tip Diameter [da]
840
Bore Diameter [di] H7
200
Hub Diameter [BD]
650
Backlash (mm) jt.i (min)
0.127
Backlash (mm) jt.e (max)
0.293
Inertia [I] kgm²
43.10
Mass [kg]
517.74
