PSG1.5-55S Spur Gear

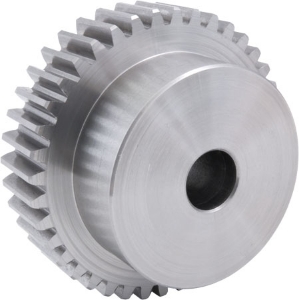

Ondrives Precision Gears and Gearboxes Part number PSG1.5-55S Spur Gear

PSG1.5-55S Spur Gear

1.5 Module 303 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)

Ondrives Precision Gears and Gearboxes Part number PSG1.5-55S Spur Gear

Ondrives Precision Gears and Gearboxes Part number PSG1.5-55S Spur Gear

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN3967	7e25
Gear Tooth Type	Spur
Normal Module mn	1.5
Pressure Angle	20°
No. of Teeth [z]	55
Torque T₂ [Nm] n1 100 r/min	24.95
Ref. Diameter [d]	82.5
Tip Diameter [da]	85.5
Bore Diameter [di] H7	14
Hub Diameter [BD]	55
Backlash (mm) jt.i (min)	0.067
Backlash (mm) jt.e (max)	0.173
Inertia [I] kgm²	6.36 x 10-4
Mass [kg]	0.868

Product specifications

Material	AISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN3967	7e25
Gear Tooth Type	Spur
Normal Module mn	1.5
Pressure Angle	20°
No. of Teeth [z]	55
Torque T₂ [Nm] n1 100 r/min	24.95
Ref. Diameter [d]	82.5
Tip Diameter [da]	85.5
Bore Diameter [di] H7	14
Hub Diameter [BD]	55
Backlash (mm) jt.i (min)	0.067
Backlash (mm) jt.e (max)	0.173
Inertia [I] kgm²	6.36 x 10-4
Mass [kg]	0.868
