PSG2.0-42PK Spur Gear

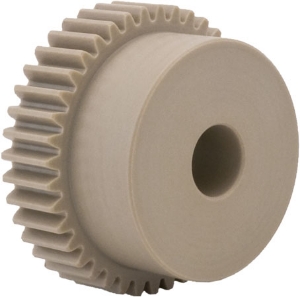

Plastic Peek GF30 Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG2.0-42PK Spur Gear

2.0 Module PEEK GF30® (Light Brown) Precision Spur Gears 20° PA Quality Grade 8e25 DIN 3961/3967 (AGMA Q9)
Plastic Peek GF30 Spur Gears from Ondrives UK precision gear and gearbox manufacturer Plastic Peek GF30 Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 100 r/min24.2
Ref. Diameter [d]84
Tip Diameter [da]88
Bore Diameter [di] H716
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.62 x 10-4
Mass [kg]0.211

Product specifications

MaterialPEEK GF30®
Quality DIN 3961 DIN39678e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]42
Torque T₂ [Nm] n1 100 r/min24.2
Ref. Diameter [d]84
Tip Diameter [da]88
Bore Diameter [di] H716
Hub Diameter [BD]55
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.62 x 10-4
Mass [kg]0.211
