PSG2.0-75SL Spur Gear

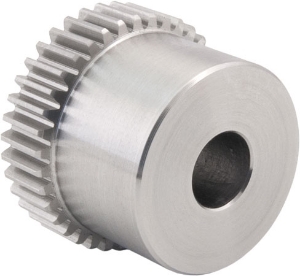

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG2.0-75SL Spur Gear

2.0 Module 316 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]75
Torque T₂ [Nm] n1 100 r/min70.47
Ref. Diameter [d]150
Tip Diameter [da]154
Bore Diameter [di] H725
Hub Diameter [BD]90
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²8.91 x 10-3
Mass [kg]3.672

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]75
Torque T₂ [Nm] n1 100 r/min70.47
Ref. Diameter [d]150
Tip Diameter [da]154
Bore Diameter [di] H725
Hub Diameter [BD]90
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²8.91 x 10-3
Mass [kg]3.672
