PSG2.0-95S Spur Gear

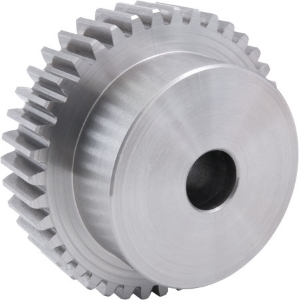

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG2.0-95S Spur Gear

2.0 Module 303 Stainless Steel Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]95
Torque T₂ [Nm] n1 100 r/min146.9
Ref. Diameter [d]190
Tip Diameter [da]194
Bore Diameter [di] H725
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.229
Inertia [I] kgm²2.36 x 10-2
Mass [kg]6.168

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn2
Pressure Angle20°
No. of Teeth [z]95
Torque T₂ [Nm] n1 100 r/min146.9
Ref. Diameter [d]190
Tip Diameter [da]194
Bore Diameter [di] H725
Hub Diameter [BD]120
Backlash (mm) jt.i (min)0.095
Backlash (mm) jt.e (max)0.229
Inertia [I] kgm²2.36 x 10-2
Mass [kg]6.168
