PSG4.0-22H

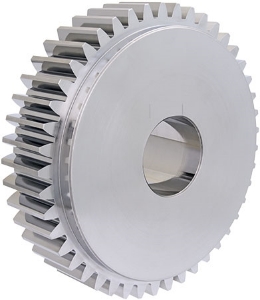

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG4.0-22H

4.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min485
Ref. Diameter [d]88
Tip Diameter [da]96
Bore Diameter [di] H716
Hub Diameter [BD]58
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.96 x 10-3
Mass [kg]2.015

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min485
Ref. Diameter [d]88
Tip Diameter [da]96
Bore Diameter [di] H716
Hub Diameter [BD]58
Backlash (mm) jt.i (min)0.067
Backlash (mm) jt.e (max)0.173
Inertia [I] kgm²1.96 x 10-3
Mass [kg]2.015
