PSG4.0-32

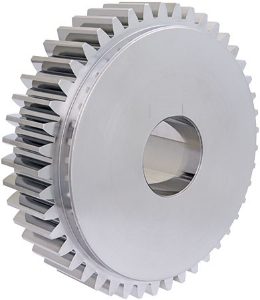

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG4.0-32

4.0 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]32
Torque T₂ [Nm] n1 100 r/min249
Ref. Diameter [d]128
Tip Diameter [da]136
Bore Diameter [di] H724
Hub Diameter [BD]98
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²8.96 x 10-3
Mass [kg]4.412

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]32
Torque T₂ [Nm] n1 100 r/min249
Ref. Diameter [d]128
Tip Diameter [da]136
Bore Diameter [di] H724
Hub Diameter [BD]98
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²8.96 x 10-3
Mass [kg]4.412
